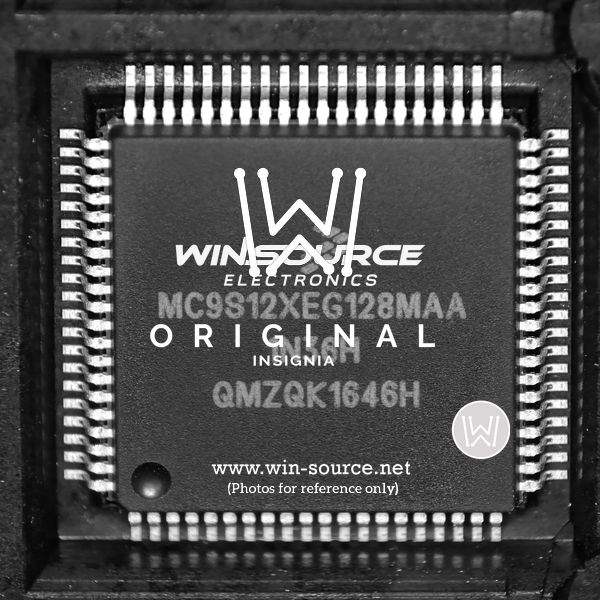

NXP MC9S12XEG128MAA Microcontroller

The NXP MC9S12XEG128MAA is a highly integrated, 16-bit microcontroller product designed for automotive and industrial applications. As part of the HCS12X family, this microcontroller combines the performance of the HCS12 core with the enhanced features of the XGATE co-processor, providing a robust platform for complex and demanding control tasks.

At the heart of the MC9S12XEG128MAA is a 16-bit HCS12 CPU that operates at up to 50 MHz. It is complemented by the XGATE co-processor, which is capable of handling high-speed, interrupt-driven tasks independently, thus offloading the main CPU and enhancing overall system performance. This synergy allows for efficient real-time control, making it ideal for applications such as automotive engine control units, transmission control modules, and body control modules.

The device boasts 128KB of on-chip flash memory, which provides ample space for application code and data storage. The flash memory is partitioned for increased flexibility, supporting both full-chip and block erase operations. Additionally, the microcontroller features 12KB of RAM, ensuring smooth execution of applications with demanding memory requirements.

For connectivity and interfacing, the MC9S12XEG128MAA is equipped with a rich set of peripherals. These include two Serial Communication Interfaces (SCI) for UART communications, two Serial Peripheral Interfaces (SPI) for high-speed synchronous serial data transfer, and an Inter-Integrated Circuit (I2C) bus interface for multi-master communication. It also offers an 8-channel, 10-bit Analog-to-Digital Converter (ADC) for analog signal processing, and an enhanced Capture/Timer/PWM module for precise timing and control applications.

The microcontroller operates within a voltage range of 2.35V to 5.25V, providing the flexibility to be used in various power environments. Additionally, it incorporates features for improved system reliability such as a watchdog timer, low-voltage detection, and loss of clock detection circuitry.

Designed with an emphasis on robustness and versatility, the NXP MC9S12XEG128MAA is a powerful solution for developers looking to create sophisticated and reliable systems in the automotive and industrial sectors.
