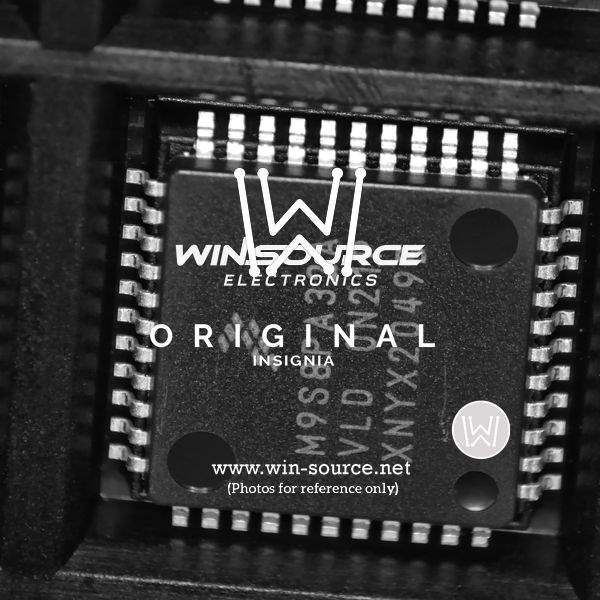

NXP MC9S08PA32AVLD Microcontroller

The NXP MC9S08PA32AVLD is a powerful and versatile 8-bit microcontroller designed for a wide range of applications that demand low power consumption and high-performance processing. This microcontroller is part of the S08 family and is well-suited for industrial control, consumer electronics, automotive systems, and other embedded applications.

Featuring a HCS08 central processing unit (CPU), the MC9S08PA32AVLD operates at a maximum frequency of 20 MHz, which provides the computational power necessary to handle complex tasks efficiently. It comes with 32KB of on-chip flash memory, providing ample space for application code storage, and 2KB of RAM for data processing, ensuring smooth multitasking capabilities.

The device is packed with a range of integrated peripherals that enhance its functionality and reduce the need for external components. These include:

• Analog-to-Digital Converter (ADC) with up to 12 channels, enabling the microcontroller to interface with analog sensors and convert their signals into digital data for processing.
• Multiple timers, including an 8-channel timer/pulse-width modulator (TPM) module, which is essential for precise timing operations and PWM control.
• A Serial Communications Interface (SCI) and an Inter-Integrated Circuit (I2C) module for serial communication with other devices and peripherals.
• A Serial Peripheral Interface (SPI) module that allows high-speed synchronous data transfer between the microcontroller and other devices.

The MC9S08PA32AVLD also emphasizes power efficiency with its multiple power-saving modes, such as stop and wait modes, which are critical for battery-powered and energy-conscious applications. Its robust design includes built-in protection features like a low-voltage detection circuit and a loss-of-clock reset function, ensuring reliable operation under various conditions.

Available in a 44-pin LQFP package, the MC9S08PA32AVLD is designed for easy integration into a broad range of embedded systems. Its combination of processing power, memory capacity, and rich set of peripherals make it an ideal choice for designers looking to create sophisticated and power-efficient applications.
