Product Overview: MC9S08DN60ACLH

The MC9S08DN60ACLH is a cutting-edge microcontroller unit (MCU) from NXP Semiconductors, designed to cater to a wide array of applications requiring a perfect blend of power efficiency and processing capabilities. This MCU is part of the S08 family, which is renowned for its robust architecture, exceptional performance, and flexibility, making it an ideal choice for industrial control, automotive, and consumer electronics applications.

Key Features of MC9S08DN60ACLH

• Core: The device is built around a high-performance S08 central processing unit (CPU), capable of reaching speeds up to 40 MHz. It provides a balanced combination of control and efficiency, suitable for handling complex tasks.
• Memory: It comes equipped with a generous 60 KB flash memory, ensuring ample space for application code and data storage. Additionally, 4 KB of RAM facilitates smooth and efficient data processing.
• Digital Peripherals: The MCU includes a rich set of digital peripherals, such as multiple channel timers, real-time counters, and a serial communication interface, which support a variety of digital functions and enhance the MCU's versatility.
• Analog Features: With an integrated analog-to-digital converter (ADC), the MC9S08DN60ACLH can easily interface with analog sensors and transducers, making it well-suited for applications that require precise analog signal processing.
• I/O Ports: Numerous input/output ports provide the flexibility needed to connect with external devices, sensors, and actuators, allowing for a highly customizable and expandable hardware setup.
• Power Management: Advanced power management features are embedded in the design, supporting a range of low-power modes to minimize energy consumption during idle periods or when full processing power is not required.

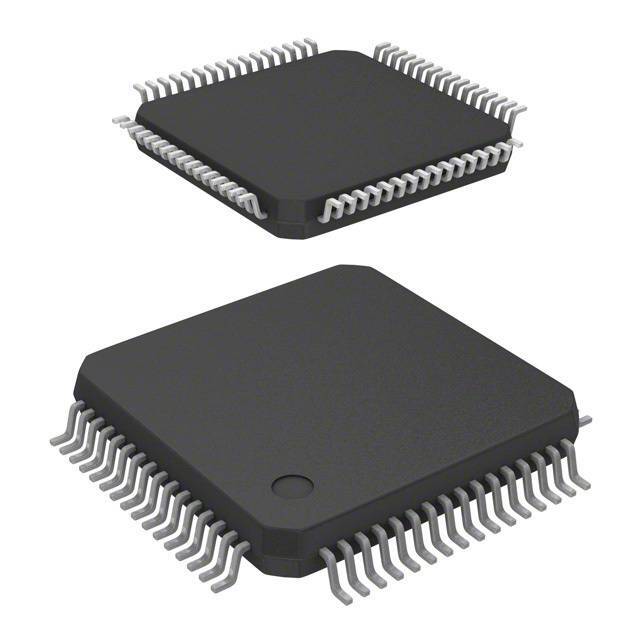

• Package: The device comes in a 64-LQFP package, which is compact and space-saving, yet provides enough pins for extensive functionality.
• Development Support: NXP offers comprehensive development support for the MC9S08DN60ACLH, including software libraries, development tools, and reference designs to accelerate the design process and reduce time to market.

In summary, the MC9S08DN60ACLH from NXP stands out as a robust and versatile MCU, offering a rich set of features and peripherals that enable developers to create sophisticated and power-efficient applications across various industries.
