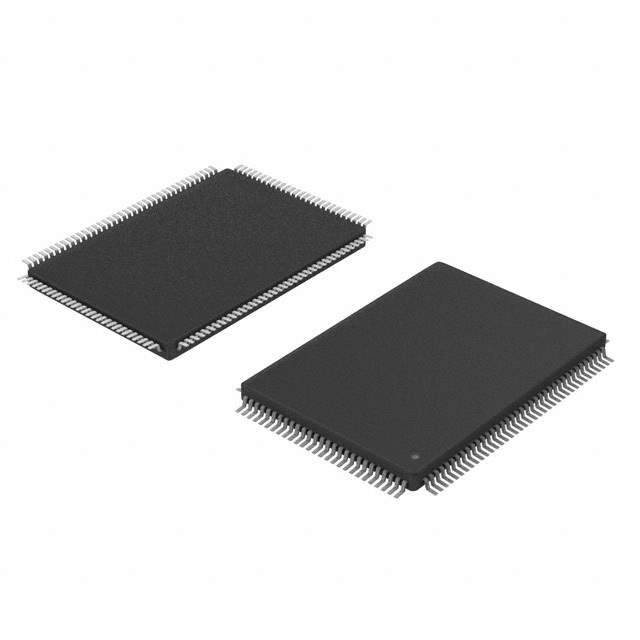

NXP MC56F8135VFGE Digital Signal Controller

The NXP MC56F8135VFGE is a highly integrated digital signal controller (DSC) that combines the processing power of a digital signal processor (DSP) with the functionality and peripheral set of a microcontroller (MCU). This device is designed to cater to a wide range of applications, including motor control, industrial control systems, power management, and embedded audio processing, among others.

Key Features:

• Advanced DSP Capability: At the heart of the MC56F8135VFGE lies a 32-bit DSP core capable of delivering 60 MIPS at 60MHz, which provides excellent computational speed and efficiency for complex algorithms and control processes.
• Robust MCU Functionality: The DSC integrates a rich set of MCU features, including up to 128KB of Flash memory, 12KB of SRAM, and a variety of communication interfaces such as SPI, I2C, CAN, and UART, making it a versatile choice for embedded systems.
• Enhanced Control Peripherals: This controller includes a range of peripherals tailored for control applications, such as a 4-channel PWM with fault protection, a 12-bit analog-to-digital converter (ADC) with up to 16 channels, and a Quadrature Encoder Interface (QEI) for precise motor position sensing.
• Energy Efficiency: The MC56F8135VFGE is designed with power-saving modes and a voltage range of 3.0V to 3.6V, ensuring efficient operation for power-sensitive applications.
• Package and Temperature Range: Housed in a 64-pin LQFP package, the device operates within an industrial temperature range of -40°C to +105°C, suitable for harsh environments.

Applications:

The versatility of the MC56F8135VFGE makes it ideal for a variety of applications, including:

• Brushless DC, AC Induction, and Servo Motor Control
• Industrial Drives and Automation Systems
• Smart Power Management Systems
• Embedded Audio and Voice Processing
• Intelligent Sensing and Control Applications

With its powerful DSP capabilities, comprehensive peripheral set, and robust design, the NXP MC56F8135VFGE Digital Signal Controller is a top choice for engineers looking to develop advanced embedded systems with stringent performance and reliability requirements.
