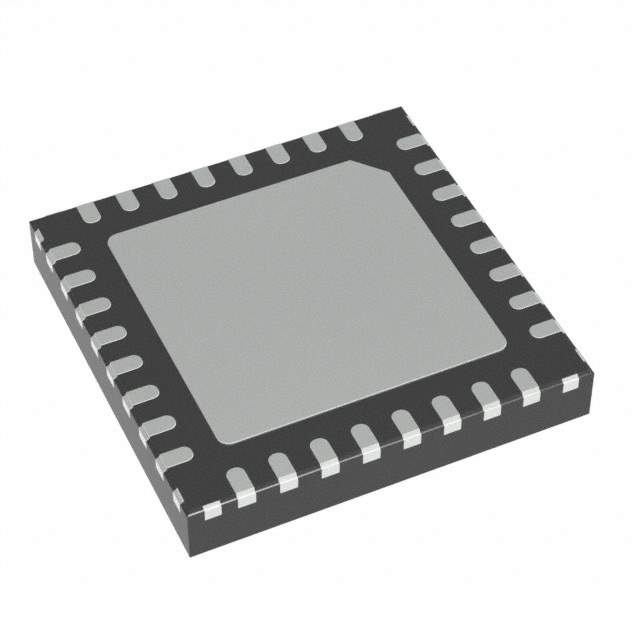

Product Overview: MC33978AES - NXP

The MC33978AES from NXP Semiconductors is a sophisticated multiple switch detection interface (MSDI) designed to detect the closing and opening of up to 22 switch contacts. This high-performance product is specifically tailored for automotive applications, providing a reliable solution for switch monitoring in vehicles.

Key Features

• Multiple Switch Inputs: Capable of interfacing with up to 22 switch inputs, the MC33978AES offers exceptional flexibility and scalability for complex automotive systems.
• Wet and Dry Contact Modes: It supports both wet and dry contact modes, allowing it to operate with a variety of switch types and in different environmental conditions.
• Integrated Serial Peripheral Interface (SPI): The inclusion of SPI enables easy communication with microcontrollers, ensuring seamless integration into automotive control systems.
• Robust Design: Designed to withstand the harsh conditions of automotive environments, it features overvoltage and reverse voltage protection, enhancing its durability and lifespan.
• Diagnostic Functions: Advanced diagnostic capabilities are built-in, including switch contact monitoring, to ensure reliable operation and to assist in fault detection and system maintenance.
• Low Standby Current: Energy efficiency is a key consideration, and the MC33978AES boasts a low standby current, which is crucial for minimizing battery drain in vehicles.

Applications

The MC33978AES is an ideal component for a wide range of automotive applications, including:

• Body control modules
• Steering wheel switch interfaces
• Door module switch interfaces
• Overhead console switch interfaces

Technical Specifications

With an operating voltage range of 5.5V to 27V, the MC33978AES is versatile and can be used in various electrical systems. Its robust design ensures it can withstand transients, and its temperature range of -40°C to 125°C makes it suitable for the extreme conditions encountered in automotive applications.

Conclusion

In conclusion, the MC33978AES switch detection interface from NXP offers a high level of integration, robustness, and flexibility, making it an excellent choice for automotive engineers looking to enhance switch monitoring capabilities in vehicle designs.
