The NXP MC17XS6500CEK is a sophisticated System Basis Chip (SBC) designed to cater to the demanding requirements of automotive and industrial applications. This high-performance product integrates multiple features that are essential for controlling vehicle dynamics and power management, making it an indispensable component for modern electronic control units (ECUs).

Key Features

• Multiple Channel Outputs: It includes a dual high-side and quad low-side switch configuration, capable of driving various loads with precision and efficiency.
• Advanced Control: The device provides SPI (Serial Peripheral Interface) for diagnostics and control, enabling seamless communication and integration with other on-board systems.
• Built-in Protection: The MC17XS6500CEK comes with state-of-the-art protection features such as overcurrent, overtemperature, and electrical overstress protection, ensuring robust performance and longevity.
• Wide Voltage Range: It operates over a broad voltage range, accommodating the diverse electrical environments found in automotive applications.
• Low Quiescent Current: The device is designed for energy efficiency with a low quiescent current, making it suitable for battery-operated systems.

Applications

The versatility of the NXP MC17XS6500CEK allows it to be used across a wide range of applications, including but not limited to:

• Automotive Engine Control Units
• Body Control Modules
• Automotive Lighting Systems
• Industrial Control Systems

Technical Specifications

Here are some of the technical specifications that make the MC17XS6500CEK a powerful choice for designers and engineers:

• Power Supply Voltage: 6V to 27V
• 5.0V/3.3V Regulator with Watchdog Timer
• Temperature Range: -40°C to 150°C

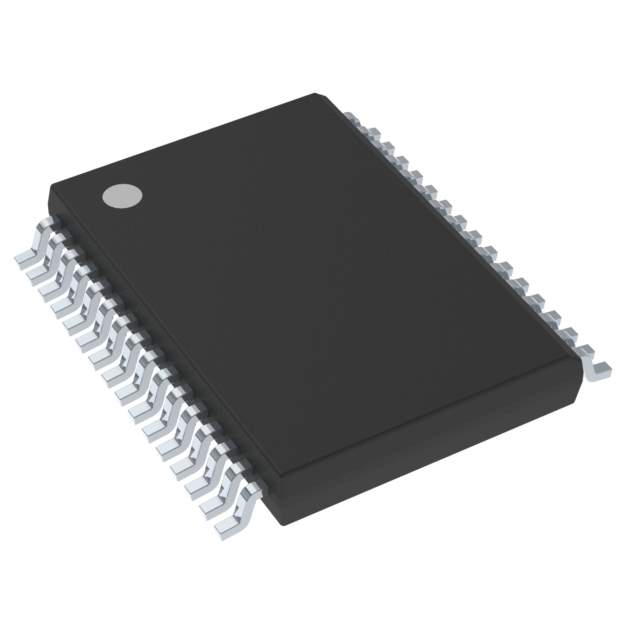

• Package: 32-lead HSOP

With its robust design and comprehensive feature set, the NXP MC17XS6500CEK is engineered to meet the stringent requirements of today's automotive and industrial markets, ensuring reliable operation in the most challenging environments.
