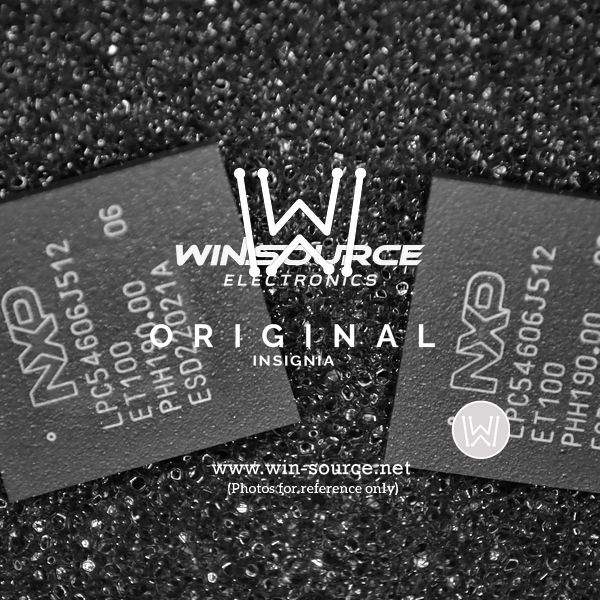

The NXP LPC54606J512ET100E is a high-performance microcontroller that is part of the LPC54000 series, designed for embedded applications that require a blend of efficiency, performance, and reliability. This microcontroller is based on a powerful ARM Cortex-M4 core, operating at frequencies of up to 180 MHz, which provides the computational power necessary to handle complex tasks and algorithms.

Key Features:

• Core: ARM Cortex-M4 with Floating Point Unit (FPU), running at up to 180 MHz.
• Memory: Equipped with 512 KB of on-chip flash memory and 200 KB of SRAM, which allows for robust applications and efficient data management.
• Communication Interfaces: Includes a variety of communication peripherals such as USB, CAN, SPI, I2C, USART, and more, providing excellent connectivity options for various applications.
• ADC/DAC: Features a 12-bit Analog-to-Digital Converter (ADC) and Digital-to-Analog Converter (DAC) for interfacing with analog sensors and actuators.
• Timers and PWM: Comes with multiple timers, including a State Configurable Timer (SCT), and supports Pulse-Width Modulation (PWM) for precise control over motors and other peripherals.
• Security: Offers security features such as AES encryption, Secure Hash Algorithm (SHA), and a Random Number Generator (RNG), ensuring data protection and secure communications.
• Power Efficiency: Designed with power-saving modes such as Sleep and Deep Power-down, which help to reduce power consumption and extend battery life in portable devices.
• Package: Available in a compact LQFP-100 (14 x 14 mm) package, which is suitable for space-constrained applications.

Applications:

The LPC54606J512ET100E microcontroller is ideal for a wide range of applications, including industrial control, consumer electronics, Internet of Things (IoT) devices, and automotive systems. Its combination of processing power, memory capacity, and rich set of peripherals makes it a versatile choice for designers looking to create sophisticated and connected embedded systems.

Development Support:

NXP provides comprehensive development support for the LPC54606J512ET100E with software libraries, development tools, and evaluation boards. This ensures that engineers can rapidly develop, prototype, and deploy applications that leverage the full capabilities of this advanced microcontroller.
