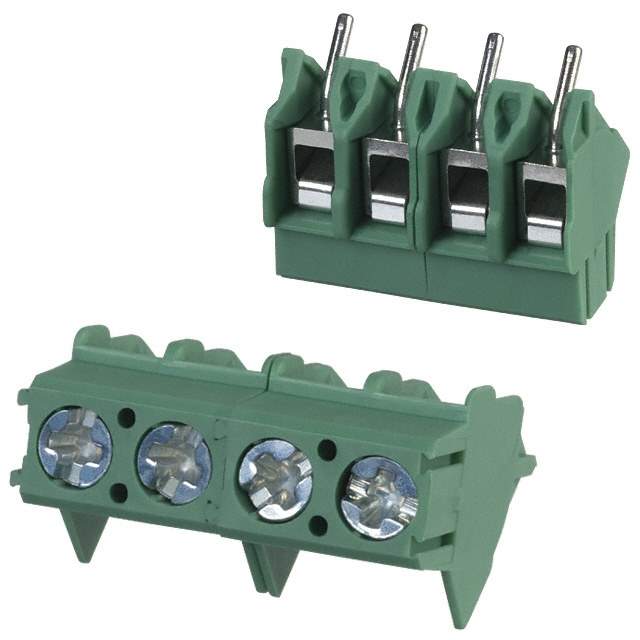

1988820 Real Image1 1988820 Real Image2
Same model may have multiple batches, images only for reference.
1988820 Real Image1 1988820 Real Image2
1988820 Real Image1 1988820 Real Image2
Same model may have multiple batches, images only for reference.

1988820

Part No 1988820
Manufacturer Phoenix Contact
Catalog Terminal Blocks
Description TERM BLOCK 4POS 45DEG 5MM PCB / 4 Position Wire to Board Terminal Block 45° (135°) Angle with Board 0.197" (5.00mm) Through Hole
Datasheet
1988820 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Terminal Blocks>Wire to Board
Mfr Phoenix Contact
Series COMBICON PTA
Package Bulk
Number of Levels 1
Positions Per Level 4
Pitch 0.197" (5.00mm)
Mating Orientation 45° (135°) Angle with Board
Current 15 A
Voltage 300 V
Wire Gauge 12-26 AWG
Mounting Type Through Hole
Wire Termination Screw
Features Interlocking (Side)
Color Green
Temperature Range - Operating -
Housing Material Polyamide (PA), Nylon
Contact Material - Plating -
Clamp Material - Plating -
Screw Material - Plating -
Torque - Screw 0.35-0.4 Nm (3.1-3.5 Lb-In)
Screw Thread M2.6
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Standard Package 250 pcs
Win Source Part Number 1380610-1988820
Ultra Librarian 3D Model Ultra Librarian 1988820 CAD Model

Description

The 1197747 is a wire-to-board terminal block from Phoenix Contact.

  • Series: COMBICON PTA
  • Positions per Level: 4
  • Pitch: 0.197" (5.00mm)
  • Color: Green
  • Features: Interlocking Side
  • Wire Gauge: 12 to 26 AWG
  • Voltage Rating: 300V
  • Current Rating: 15A
  • Mating Orientation: 45° (135°) Angle
  • Wire Termination: Screw
  • Material: Polyamide (PA) and Nylon
  • Mounting Type: Through Hole
