NXP LPC1857JBD208E Microcontroller

The NXP LPC1857JBD208E is a high-performance microcontroller unit (MCU) that belongs to the LPC1800 series, designed to cater to the demanding needs of embedded applications. This powerful MCU is based on the ARM Cortex-M3 processor, which operates at frequencies of up to 150 MHz, providing a balanced blend of computing power and energy efficiency.

The LPC1857JBD208E is equipped with a substantial 1MB of flash memory and 136KB of on-chip SRAM, which are essential for storing and running complex application code. Its advanced architecture supports a wide range of communication interfaces, including USB 2.0, Ethernet, CAN, SPI, I2C, UART, and more, making it an ideal choice for connectivity-rich applications.

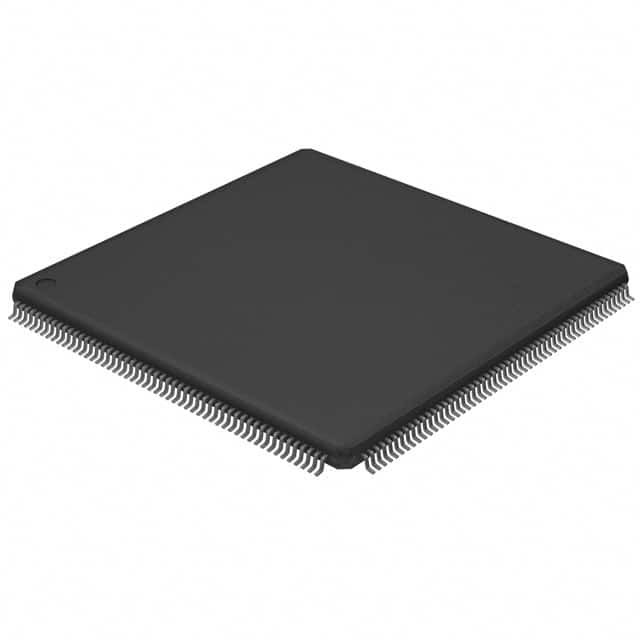

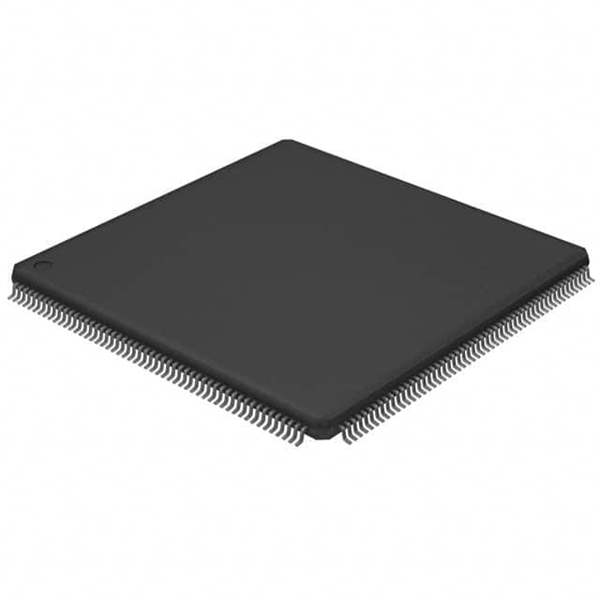

With its 208-pin LQFP (Low-profile Quad Flat Package), the LPC1857JBD208E ensures a compact footprint while offering ample I/O options for interfacing with peripherals and other devices. The MCU also boasts a comprehensive set of analog and digital peripherals, such as an ADC (Analog to Digital Converter), DAC (Digital to Analog Converter), PWM (Pulse Width Modulation), and a motor control PWM for applications requiring precise control over peripherals.

Safety and reliability are paramount for NXP, and the LPC1857JBD208E comes with built-in features to support system robustness, such as Memory Protection Unit (MPU), a Nested Vectored Interrupt Controller (NVIC), and various timers. These features enable the creation of secure and reliable systems that can handle multiple tasks efficiently.

Developers can also take advantage of the extensive ecosystem of development tools and software support provided by NXP, including IDEs, middleware, and real-time operating systems (RTOS) support, to accelerate the development process and bring products to market faster.

In summary, the NXP LPC1857JBD208E is a versatile and powerful microcontroller that is well-suited for a wide range of industrial, communication, and control applications. Its advanced features and support infrastructure make it an excellent choice for designers looking to create sophisticated and high-performance embedded systems.
