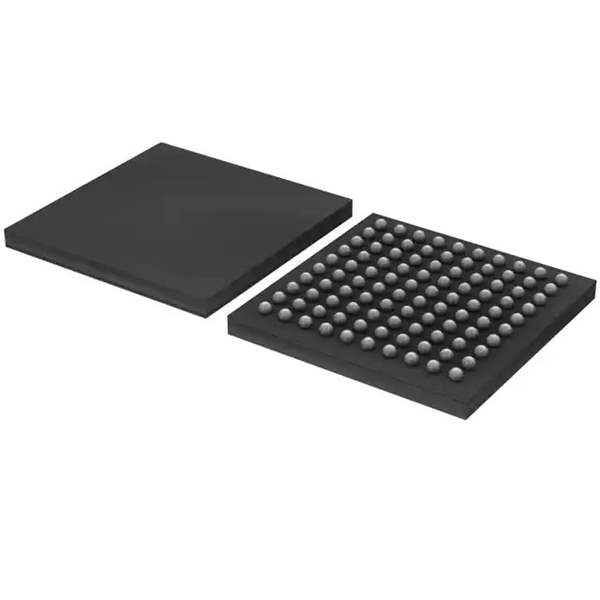

The LPC1823JET100E is a high-performance microcontroller unit (MCU) from NXP Semiconductors, designed to meet the needs of sophisticated embedded applications. This MCU is part of the LPC1800 series, which is renowned for its high level of integration and low power consumption.

Key Features

• Core: The LPC1823JET100E is built around a powerful ARM Cortex-M3 processor, which operates at frequencies of up to 180 MHz. This core provides the perfect balance between performance and power efficiency, making it ideal for a wide range of applications.
• Memory: It comes equipped with 256 KB of flash memory and 32 KB of SRAM, providing ample space for application code and data storage.
• Digital Peripherals: The device includes a variety of digital peripherals such as GPIO, SPI, I2C, UARTs, CAN, and more, allowing for versatile connectivity and control options.
• Analog Features: For applications requiring analog integration, the LPC1823JET100E offers several ADCs (Analog-to-Digital Converters) and DACs (Digital-to-Analog Converters), making it suitable for interfacing with sensors and other analog devices.
• Timers and PWM: Multiple timers and PWM (Pulse Width Modulation) channels are available for precise timing and control applications, including motor control and LED dimming.
• Package: The MCU is provided in a low-profile LQFP-100 (Low Quad Flat Package) that optimizes board space and is suitable for surface-mount technology.

Applications

The LPC1823JET100E is versatile and can be used in a broad range of applications, including:

• Industrial control systems
• Robotics
• Automotive electronics
• Internet of Things (IoT) devices
• Consumer electronics
• Medical devices

Support and Resources

NXP provides extensive support for the LPC1823JET100E, including development tools, software libraries, and documentation to facilitate rapid development and deployment. The MCU is also supported by a variety of third-party tools and software, ensuring a robust ecosystem for developers.
