Product Overview: LPC1786FBD208 - NXP

The LPC1786FBD208 is a high-performance microcontroller designed by NXP Semiconductors, tailored for embedded applications requiring a rich set of features and low power consumption. This microcontroller is part of the LPC1700 series, which is based on the Cortex-M3 processor core, offering a perfect blend of energy efficiency and performance.

Key Features:

• Core: ARM Cortex-M3 processor, running at frequencies of up to 120 MHz.
• Memory: Equipped with 512 KB of flash memory and 96 KB of SRAM, providing ample space for complex applications.
• GPIO: Provides up to 70 General Purpose I/O (GPIO) pins with configurable pull-up/pull-down resistors, offering flexibility for interfacing with various peripherals.
• Connectivity: Includes an array of communication interfaces such as USB 2.0 Full-Speed device/host/OTG, Ethernet, CAN, SPI, I2C, UART, and more, facilitating versatile connectivity options.
• Analog Features: Comes with a 12-bit Analog-to-Digital Converter (ADC) with support for up to 8 channels, and a 10-bit Digital-to-Analog Converter (DAC) for analog signal processing.
• Timers: Features multiple 32-bit timers, a Motor Control PWM, and a Quadrature Encoder Interface, suitable for precise timing operations and motor control applications.
• Power Efficiency: Offers multiple power modes including an ultra-low power Sleep mode, which significantly reduces power consumption during idle periods.

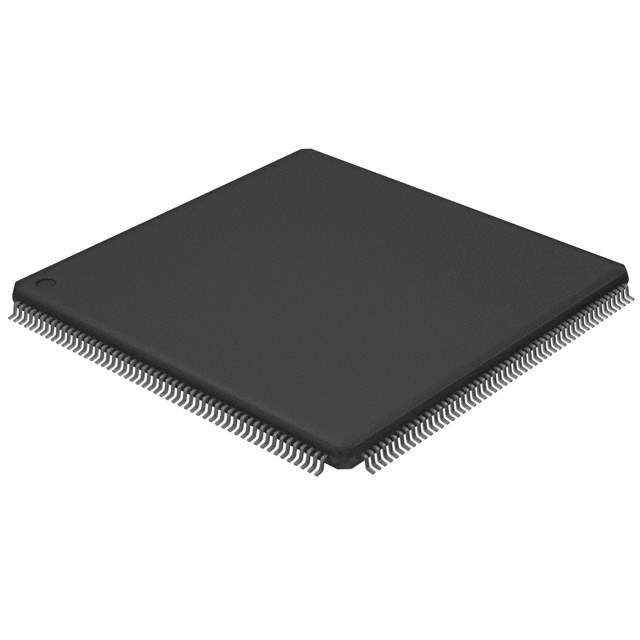

• Package: Available in a compact 208-pin LQFP package, optimizing board space without compromising on functionality.

Applications:

The LPC1786FBD208 is ideal for a wide range of applications such as industrial control systems, networking, medical devices, and consumer electronics. Its robust feature set also makes it a prime choice for Internet of Things (IoT) devices, where connectivity and power efficiency are paramount.

Support and Resources:

Developers can take advantage of NXP's extensive support network, which includes detailed datasheets, application notes, and software libraries. Additionally, the LPC1786FBD208 is supported by a range of development tools and software platforms, allowing for rapid development and prototyping of applications.
