NXP LPC1774FBD208,551 Microcontroller Overview

The NXP LPC1774FBD208,551 is a high-performance microcontroller that is part of the LPC1700 series designed for embedded applications. This microcontroller is based on a 32-bit ARM Cortex-M3 processor core, which offers exceptional efficiency and speed, making it well-suited for a variety of industrial, consumer, and general-purpose applications.

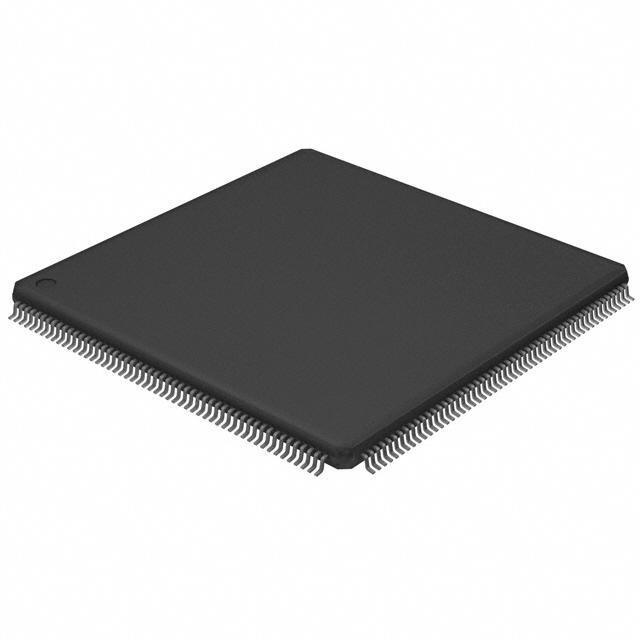

With a clock speed of up to 120 MHz, the LPC1774FBD208,551 provides ample processing power for complex tasks. It is equipped with 256 KB of flash memory and 64 KB of RAM, ensuring sufficient space for program storage and smooth operation. The device is housed in a 208-pin LQFP (Low Profile Quad Flat Package), offering a compact footprint for space-constrained applications.

Key Features:

• Core: ARM Cortex-M3 processor running at up to 120 MHz.
• Memory: 256 KB of on-chip flash memory and 64 KB RAM.
• I/O: A rich set of peripherals including GPIO, UART, I2C, SPI, CAN, and more for versatile connectivity.
• ADC: Integrated 12-bit Analog-to-Digital Converter with multiple channels for analog input.
• PWM: Motor control PWM and standard PWM for a wide range of control applications.
• Timers: Multiple 32-bit timers, including a SysTick timer, which can be used for RTOS task scheduling.
• Power Efficiency: Enhanced power-saving modes for energy-critical designs.
• Package: Available in a space-saving 208-pin LQFP package.

The LPC1774FBD208,551 also features an Ethernet MAC, which allows for easy integration into networked systems. It supports a variety of serial communication protocols, ensuring compatibility with a wide range of peripherals and other microcontrollers. With its robust set of features, this microcontroller is an ideal choice for applications demanding high-speed processing and a variety of communication interfaces, such as industrial control, networking, medical devices, and more.

In summary, the NXP LPC1774FBD208,551 is a versatile and powerful microcontroller that provides a rich feature set and high performance for a wide range of applications. Its extensive I/O capabilities, combined with its efficient ARM Cortex-M3 core, make it a reliable and cost-effective solution for your embedded system needs.
