The IP4264CZ8-20-TTL is a highly integrated device designed and manufactured by NXP Semiconductors, a leader in the electronics industry. This product is tailored to provide robust protection for sensitive electronics against Electrostatic Discharge (ESD) and other voltage-induced transient phenomena. Its primary application is to safeguard high-speed data lines and I/O ports, making it an ideal choice for a wide range of consumer electronics, including smartphones, tablets, and other portable devices.

Key Features

• ESD Protection: The IP4264CZ8-20-TTL offers ESD protection up to IEC 61000-4-2 level 4, ensuring that devices remain safe from electrostatic discharges of up to ±15 kV (air discharge) and ±8 kV (contact discharge).
• Low Capacitance: It features a low input capacitance of typically 1.5 pF, which is crucial for maintaining signal integrity on high-speed data lines without significantly affecting data rates.
• Integrated Resistors: This device includes series resistors which provide additional line termination, reducing reflections and improving signal quality.

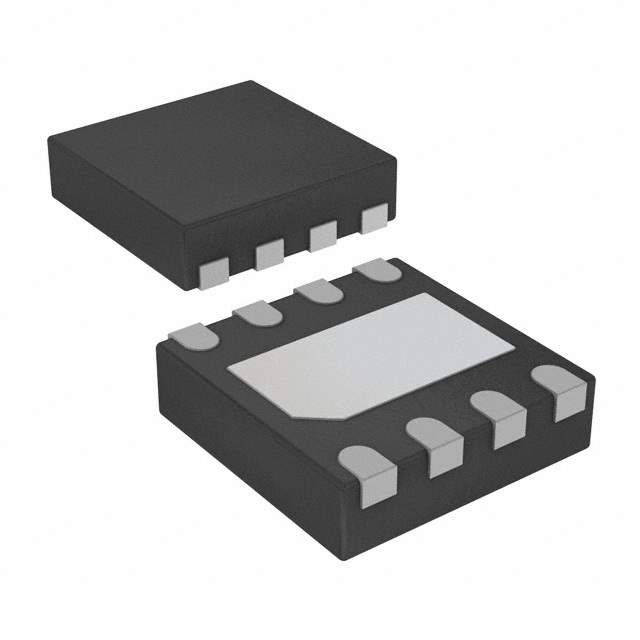

• Small Package: The IP4264CZ8-20-TTL comes in a small leadless 8-pin package, which is designed to save valuable board space in compact electronic assemblies.
• Wide Operating Voltage Range: It supports an operating voltage range of 0 to 5.5V, compatible with TTL (Transistor-Transistor Logic) levels, hence the designation TTL in its product name.

Applications

The IP4264CZ8-20-TTL is versatile and can be used in various applications where data line protection is crucial. Some common applications include:

• USB 2.0 Power and Data Line Protection
• Mobile Phones and Portable Electronics
• Computers and Peripherals
• Network Ports
• Audio and Video Interfaces

Reliability

NXP's commitment to quality ensures that the IP4264CZ8-20-TTL meets stringent reliability standards. It is designed to withstand the normal wear and tear of everyday use, as well as the occasional stress of high-voltage transients. This makes it a reliable choice for manufacturers looking to enhance the durability and longevity of their products.
