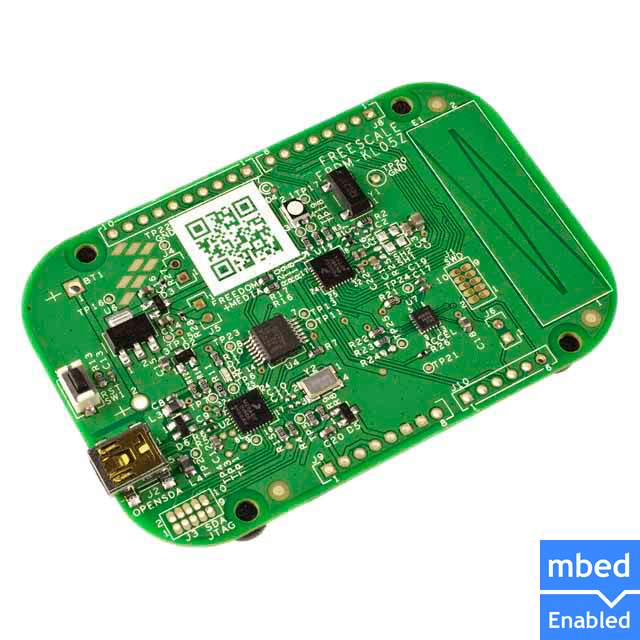

The FRDM-KL05Z is an ultra-cost-effective development platform introduced by NXP Semiconductors. This platform is based on the Kinetis L series KL05Z MCUs (Microcontroller Units) which are built on the ARM® Cortex®-M0+ core. The FRDM-KL05Z is designed to streamline application development and enable rapid prototyping for a wide array of applications.

Key Features

• MCU Core: ARM® Cortex®-M0+ processor running at up to 48MHz.
• Memory: Includes 32KB of flash memory and 4KB of RAM.
• Integration: Features a range of integrated peripherals such as a 12-bit ADC, a 12-bit DAC, TPM (Timer/PWM Module), and multiple communication interfaces (SPI, I2C, UART).
• Compatibility: The FRDM-KL05Z is form-factor compatible with the Arduino™ R3 pin layout, providing a broad range of expansion board options.
• Onboard Debugging: Comes with an onboard OpenSDA debugging and programming circuit, negating the need for external tools for most development use cases.
• Flexible Power Supply Options: Can be powered through the USB connection, or with an external power supply.
• Software Support: Supports a variety of development environments and tools including MCUXpresso IDE, IAR, Keil, and others.

Target Applications

The FRDM-KL05Z platform is versatile and suitable for a multitude of applications ranging from low-power embedded systems to sophisticated control applications. Target applications include, but are not limited to:

• Consumer Electronics
• Internet of Things (IoT) Devices
• Wearable Technology
• Industrial Control
• Medical Systems
• Home Automation

Package Contents

The FRDM-KL05Z development platform package typically includes the FRDM-KL05Z board itself along with necessary documentation to get started. Software and additional resources can be downloaded from the NXP website.

Whether you're a seasoned developer or just starting out, the FRDM-KL05Z offers a great balance of features, ease of use, and value, making it a smart choice for your next project.
