Product Overview: BTA204S-1000C

The BTA204S-1000C is a high-performance triac, designed and manufactured by NXP Semiconductors, a leader in the electronic components industry. This triac is specifically engineered to meet the needs of modern AC load control applications, providing a robust and efficient solution for designers looking to manage power in their electronic circuits.

Key Features

• High Blocking Voltage: With a maximum repetitive peak off-state voltage (VDRM) of 1000V, the BTA204S-1000C is capable of handling high-voltage applications with ease, ensuring reliability even under stressful conditions.
• Current Rating: The triac offers a high RMS on-state current (IT(RMS)) of 4A, making it suitable for controlling moderate power levels in various electronic devices.
• High Surge Current: It can handle a non-repetitive surge peak on-state current (ITSM) of up to 40A, providing excellent performance during short overcurrent events.
• Sensitive Gate: The BTA204S-1000C features a sensitive gate that allows for direct interfacing with microcontrollers and other logic-level devices, simplifying the design of control circuits.

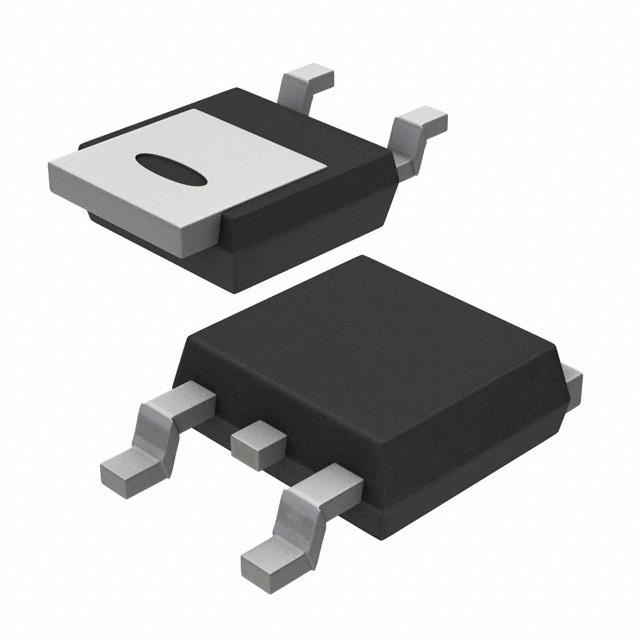

• Package: Enclosed in a surface-mount DPAK (TO-252) package, the triac ensures a compact footprint on PCBs, making it ideal for space-constrained applications.
• Operating Temperature Range: It is designed to operate within a wide temperature range of -40°C to +125°C, accommodating various environmental conditions without compromising performance.

Applications

The BTA204S-1000C is versatile and can be implemented in a multitude of applications, including but not limited to:

• Home appliances (e.g., washing machines, dishwashers, electric heaters)
• Lighting systems (e.g., dimmers, switchers)
• Motor control circuits
• Power tools
• Industrial automation

Conclusion

In summary, the BTA204S-1000C from NXP Semiconductors is a powerful and reliable triac suitable for a wide range of AC power control applications. Its high blocking voltage, current handling capability, and sensitive gate make it an excellent choice for designers looking to build efficient and robust electronic systems.
