The BT169D,116, manufactured by NXP Semiconductors, is a silicon-controlled rectifier (SCR) that is widely used in the electronics industry for its reliability and efficiency. This component is designed to switch and control high-current AC or DC circuits, making it an essential part of various applications including motor control, lighting dimmers, and pressure control systems.
Key Features
- Voltage Capability: The BT169D,116 is designed to handle a repetitive peak off-state voltage (V<sub>DRM) of 400V, making it suitable for a broad range of applications.
- Current Rating: With an on-state RMS current (I<sub>T(RMS)) of 0.8A, this SCR can control moderate power levels efficiently.
- Gate Trigger Voltage: A low gate trigger voltage (V<sub>GT) ensures that the device can be easily triggered into conduction with minimal power.
- Sensitivity: The BT169D,116 features a sensitive gate that allows for direct interfacing with microcontrollers and other logic-level devices.

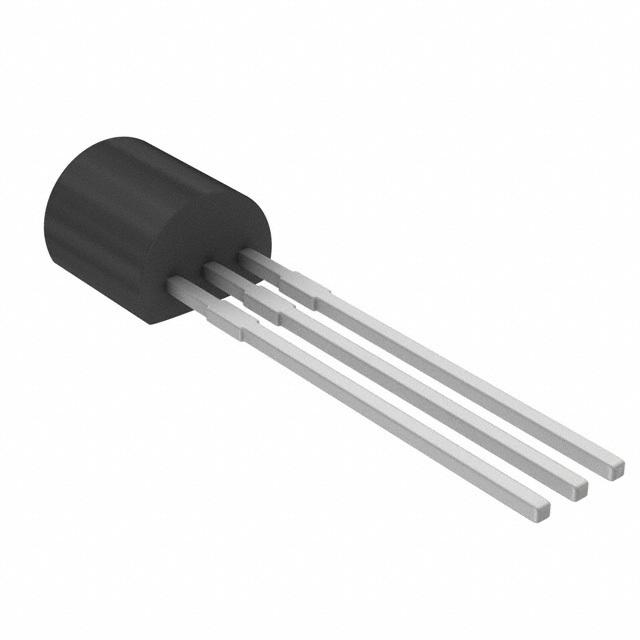

- Package: Encased in a TO-92 package, it is compact and suitable for through-hole mounting, which simplifies the assembly process on printed circuit boards.
Applications
The versatility of the BT169D,116 SCR makes it a popular choice for a variety of applications. Some of the common uses include:
- Overvoltage crowbar protection
- Motor control circuits
- Capacitive discharge ignitions
- Power control in domestic appliances
- Lighting dimmer circuits
Reliability and Quality
NXP Semiconductors is known for its commitment to quality and the BT169D,116 is no exception. It is built to meet high industry standards, ensuring consistent performance and durability. The device also features thermal and overcurrent protection, contributing to its robustness and long service life in demanding environments.
Summary
In summary, the BT169D,116 from NXP is a highly reliable SCR that offers excellent performance for controlling power in both AC and DC circuits. Its sensitive gate, high voltage capability, and compact TO-92 package make it an ideal choice for designers looking for a cost-effective and space-efficient switching solution.
