Product Overview: 74LVT16646ADL,512 by NXP Semiconductors

The 74LVT16646ADL,512 is a high-performance, low-voltage, 16-bit transceiver designed by NXP Semiconductors. This integrated circuit is part of the LVT family, which is known for its low-voltage operation and high-speed interface technology. The device is ideal for facilitating bidirectional communication between two buses in a system that requires high-speed data transfer and minimal power consumption.

Key Features

• Low-Voltage Operation: The 74LVT16646ADL operates at a nominal voltage of 3.3V, making it suitable for systems that require low-power consumption without sacrificing performance.
• High-Speed Interface: With its capability to support fast data transfer rates, this transceiver is well-suited for high-speed data processing and computing applications.
• Bus Hold Function: The device incorporates a bus hold feature that retains the last active data inputs when the control inputs are inactive, thus eliminating the need for external pull-up or pull-down resistors.
• Live Insertion and Extraction: It is designed to support live insertion and extraction, which allows for system maintenance and upgrades without powering down the system.
• Wide Operating Temperature Range: The transceiver can operate over an industrial temperature range, making it reliable for use in various environmental conditions.

Applications

The 74LVT16646ADL,512 transceiver is versatile and can be used in a wide range of applications, including:

• Communication infrastructure
• Networking equipment
• High-speed data acquisition systems
• Computers and computer peripherals
• Industrial control systems

Product Specifications

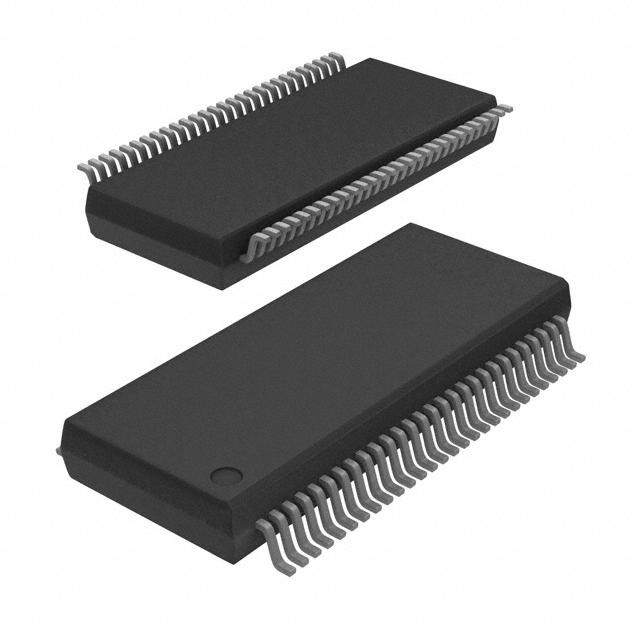

The device comes in a 48-pin SSOP (Shrink Small Outline Package) which allows for a compact footprint on printed circuit boards. It supports a wide data I/O voltage range from 2.7V to 3.6V, which provides compatibility with various logic levels and ensures interoperability with other low-voltage devices. Furthermore, the 74LVT16646ADL,512 is fully specified for partial power-down applications using Ioff, which ensures that the device does not provide any damaging backflow current when powered down.

With its combination of high-speed performance, low-voltage operation, and robust feature set, the 74LVT16646ADL,512 from NXP Semiconductors is an excellent choice for designers looking to optimize their high-speed digital interface applications.
