Product Overview: 74LVCH32245AEC/G,5

The 74LVCH32245AEC/G,5 is a high-performance, low-voltage CMOS product fabricated with silicon gate CMOS technology. Manufactured by NXP Semiconductors, this device is designed to be a 32-bit transceiver featuring non-inverting 3-state bus compatible outputs in both send and receive directions. The 74LVCH32245AEC/G,5 is part of NXP's advanced high-speed CMOS family and is particularly suitable for implementing buffer registers, I/O ports, bidirectional bus drivers, and working as a connection between two buses of different voltages and speeds.

Key Features

• Wide Voltage Range: The device supports a wide range of supply voltages from 1.2V to 3.6V, making it versatile for interfacing with both 3.3V and lower voltage systems.
• Bus-Hold Function: Integrated bus-hold circuitry on the data inputs eliminates the need for external pull-up or pull-down resistors and helps to maintain last known state during high-impedance conditions.
• High-Speed Operation: It is capable of operating at high speeds with a balanced propagation delay and transition times, providing reliable high-speed data transmission.
• Low Power Consumption: The device is optimized for low power consumption, making it ideal for power-sensitive applications.
• Live Insertion and Extraction: It features built-in circuitry that allows for live insertion and extraction without causing glitches or errors on the data lines.
• ESD Protection: The device includes robust electrostatic discharge (ESD) protection, ensuring durability and longevity in harsh environments.

Applications

• Memory Interfacing
• Data Communication
• Signal Routing
• Server and Networking Equipment
• Industrial Control Systems

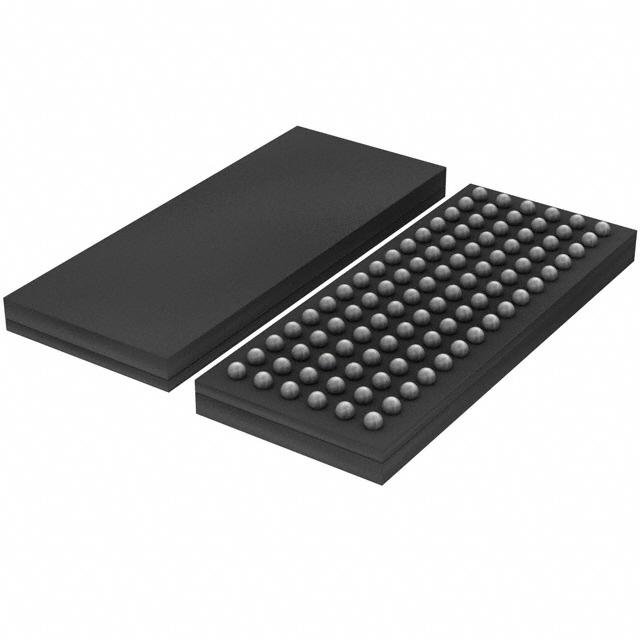

The 74LVCH32245AEC/G,5 is packaged in a lead-free, green-compliant package, reflecting NXP's commitment to environmental sustainability. Its versatility, combined with performance, makes it a prime choice for designers looking for a reliable transceiver to facilitate data communication in a wide array of electronic systems.

With its robust feature set and NXP's reputation for quality, the 74LVCH32245AEC/G,5 is a solid choice for your next design project that requires high-speed bidirectional data transfer between systems.
