The 74LVC595APW is a high-performance, 8-bit serial-in/serial or parallel-out shift register with a storage register and 3-state outputs from the renowned semiconductor manufacturer, NXP Semiconductors. This integrated circuit (IC) is part of the LVC (Low-voltage CMOS) family, which is well-known for its low power consumption and high-speed operation.

Key Features

• Wide Supply Voltage Range: The device operates on a supply voltage ranging from 2.3V to 5.5V, making it suitable for interfacing with both 3.3V and 5V logic levels.
• High-Speed Performance: It offers a shift clock frequency of up to 100 MHz (typical at 5V), which is ideal for high-speed data processing applications.
• Low Power Consumption: The IC features a low power consumption with a typical quiescent current of only 40 µA, which is beneficial for power-sensitive designs.
• Output Drive Capability: The 74LVC595APW can drive up to 24 mA at the output, allowing for direct drive of LEDs and other display elements.
• Flexible Operating Modes: It supports both serial and parallel data input, as well as serial or parallel data output, offering flexibility in interfacing with microcontrollers or other digital systems.
• 3-State Outputs: The outputs can be placed in a high-impedance state, which is useful when multiple devices are connected to a common data bus.

Applications

The 74LVC595APW is a versatile component that can be used in a wide range of applications, including:

• LED displays and LED matrix control
• Serial-to-parallel data conversion
• Interface circuitry for microprocessors/microcontrollers
• Digital signal processing
• Data storage and transfer in communication systems

Package Information

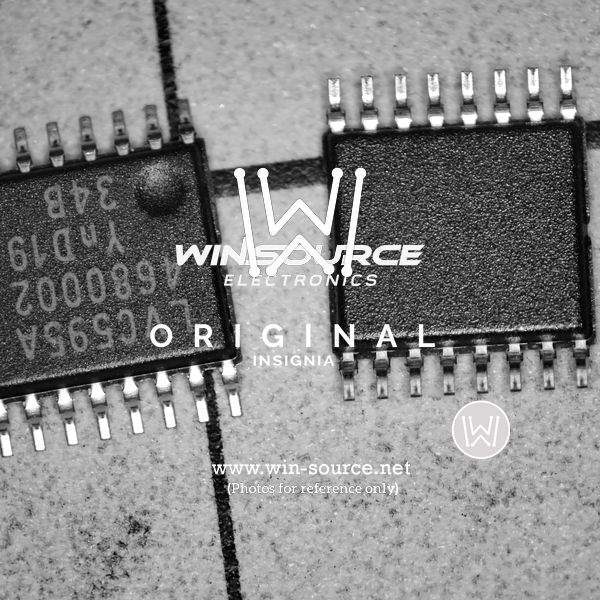

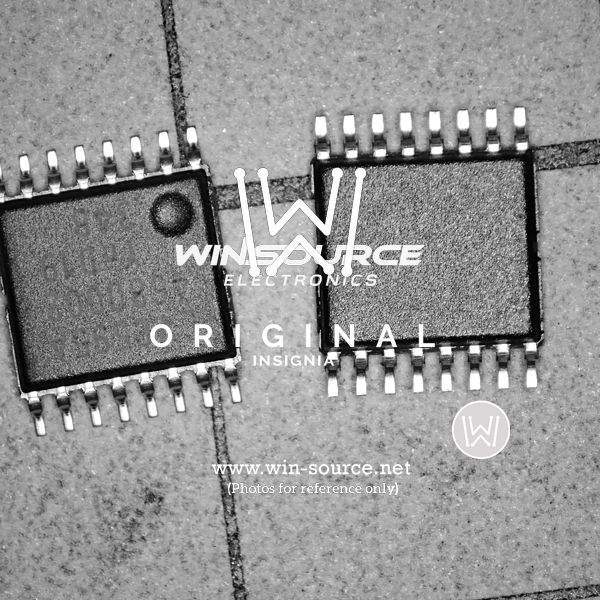

The device is available in a TSSOP16 (Thin Shrink Small Outline Package) format, which offers a compact footprint for space-constrained applications. The package is designed for surface-mount technology (SMT), enabling efficient assembly and soldering on printed circuit boards.

Quality and Reliability

NXP Semiconductors is committed to delivering high-quality products. The 74LVC595APW is manufactured under stringent conditions to ensure reliability and performance in even the most demanding environments.
