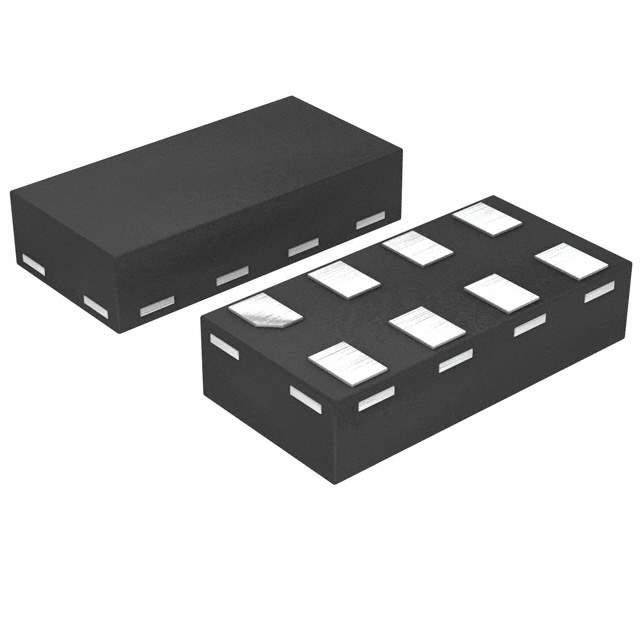

Product Overview: 74LVC3G17GT - NXP Semiconductors

The 74LVC3G17GT is a high-performance, triple Schmitt-trigger buffer designed by NXP Semiconductors, crafted to meet the requirements of high-speed Si-gate CMOS devices. It belongs to the 74LVC family, which is well-known for its low-voltage operation and low-power consumption, making it an ideal choice for battery-operated and portable applications.

This integrated circuit (IC) is characterized by its triple buffer gates with Schmitt-trigger inputs. These inputs have hysteresis, which increases the noise immunity and transforms slowly changing input signals into sharply defined jitter-free output signals, enhancing the IC's performance in environments with high electrical noise.

The 74LVC3G17GT operates on a very low voltage range of 1.65V to 5.5V. This wide operating voltage range allows the device to be used in systems that interface with both 3.3V and 5V logic, providing a great deal of flexibility in mixed-voltage environments. Additionally, it offers the advantage of 5V tolerant inputs, which means that the device can handle 5V input signals even when operating at a lower supply voltage, preventing damage to the IC.

Key features of the 74LVC3G17GT include:

• High noise immunity due to Schmitt-trigger action
• Low power consumption, ideal for energy-sensitive applications
• Wide operating voltage range (1.65V to 5.5V)
• 5V tolerant inputs for interfacing with higher voltage logic levels
• Input levels compatible with TTL (Transistor-Transistor Logic)
• Complies with JEDEC standard no. 8-1A
• ESD protection exceeds JESD 22, ensuring robustness
• Available in a small TSSOP8 (Thin Shrink Small Outline Package) form factor

With its compact form factor, the 74LVC3G17GT is suitable for high-density mounting and is an excellent choice for space-constrained applications. It is typically used in signal conditioning, line driving, or any application where buffering with a Schmitt-trigger input is required.

Overall, the 74LVC3G17GT from NXP Semiconductors is a versatile, robust, and energy-efficient solution for modern electronic systems requiring high noise immunity and low-power operation.
