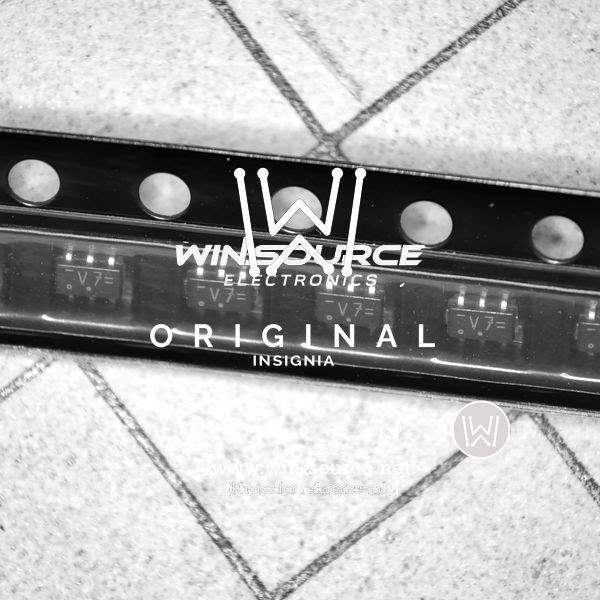

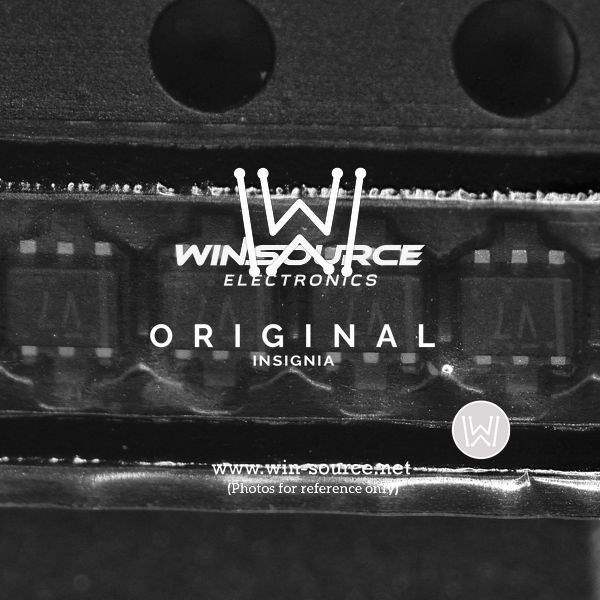

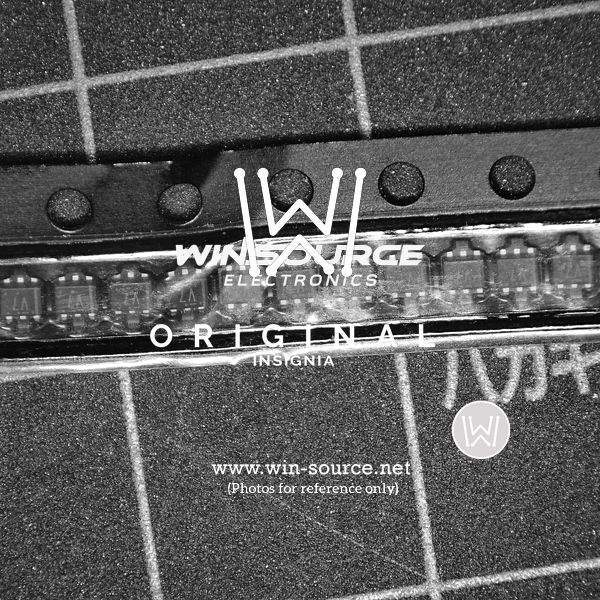

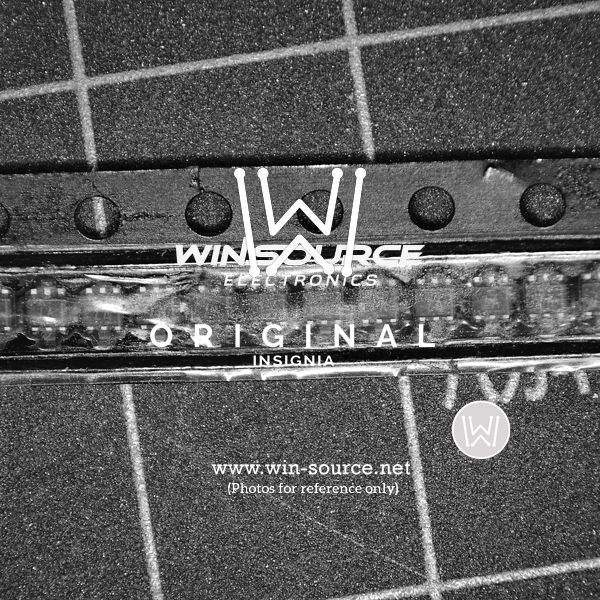

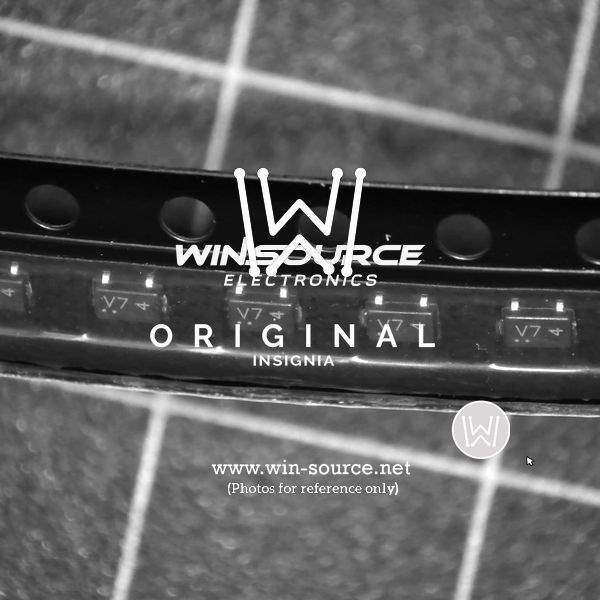

The 74LVC2G07GW is a high-performance, dual-buffer IC with open-drain outputs, manufactured by NXP Semiconductors. Designed for use in 3.3V systems, it is part of the LVC family, which is renowned for low-voltage operation and compatibility with a wide range of applications. This particular component is packaged in a compact SOT363 (TSSOP6) format, making it well-suited for space-constrained applications.

Key Features

• Logic Type: The device is a dual non-inverting buffer with open-drain outputs, which allows for level shifting and wired-OR configurations.
• Power Supply: It supports a wide operating voltage range of 1.65V to 5.5V, catering to low-voltage and mixed-voltage applications.
• High-Speed Performance: With a propagation delay of just a few nanoseconds, the 74LVC2G07GW is optimized for high-speed signal processing.
• Current Drive: The IC can source or sink up to 32 mA at the output, providing robust drive capabilities.
• ESD Protection: The inputs are protected against electrostatic discharge, ensuring the device's reliability and longevity in harsh environments.
• Compatibility: Input levels are compatible with 5V TTL levels, making it suitable for interfacing with older logic families.
• Footprint: The small 6-pin TSSOP package allows for efficient use of PCB space.

Applications

The 74LVC2G07GW is a versatile component that can be employed in a diverse range of applications. Its open-drain outputs make it ideal for creating wired-OR logic gates, interfacing with buses, or driving LEDs. It is also suitable for level shifting purposes, allowing devices operating at different voltage levels to communicate with each other. Furthermore, its high-speed characteristics make it a good choice for high-frequency signal buffering in telecommunications, computing, and consumer electronics.

Quality and Reliability

NXP Semiconductors is committed to delivering high-quality products. The 74LVC2G07GW is produced under rigorous quality control standards, ensuring consistent performance and reliability for critical applications. Its robust ESD protection and ability to operate across a broad temperature range make it a reliable choice for designers and engineers in various industries.
