Product Overview: 74LVC14APW

The 74LVC14APW is a high-performance, low-voltage CMOS device manufactured by NXP Semiconductors. This integrated circuit is part of the LVC family, which is known for operating at low voltages while maintaining the ability to interface with higher voltage levels, ensuring compatibility across a wide range of applications.

Key Features

• Hex Inverting Schmitt Trigger: The device contains six independent Schmitt trigger inverters, which are designed to provide noise immunity and a clean output signal, making it ideal for use in digital applications where signal conditioning is necessary.
• Low Voltage Operation: It operates at a supply voltage ranging from 1.2V to 3.6V, which allows for use in low-voltage applications and supports battery-operated devices.
• High-Speed Performance: The 74LVC14APW offers a high-speed performance, with a typical propagation delay of only a few nanoseconds, ensuring quick response times in critical applications.
• 5V Tolerant Inputs: Inputs can tolerate a voltage level of up to 5V, even when the device is powered off, which provides a level of protection and flexibility when interfacing with mixed-voltage systems.
• Low Power Consumption: This device is optimized for low power consumption, which is essential for extending battery life in portable devices.
• Wide Temperature Range: It is designed to operate over a wide temperature range, making it suitable for industrial and automotive applications where temperature extremes are common.

Applications

The 74LVC14APW is versatile and can be used in a variety of applications, including:

• Wave shaping and noise filtering
• Signal processing
• Glitch removal
• Logic level translation
• Portable and battery-powered electronics

Packaging and Quality

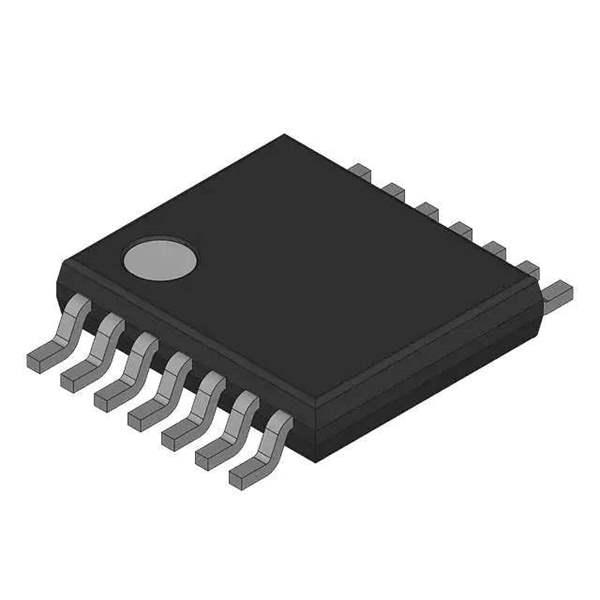

This product is offered in a TSSOP14 package, which is a thin shrink small outline package with 14 leads. The package is designed for surface mount technology, which is suitable for compact PCB layouts. NXP Semiconductors is committed to high-quality standards, and the 74LVC14APW is no exception, ensuring reliable performance for critical electronic systems.
