Product Overview: 74LVC06APW by NXP Semiconductors

The 74LVC06APW is a high-performance, low-voltage CMOS device manufactured by NXP Semiconductors. This integrated circuit is part of the LVC family, which is known for its low-voltage operation and compatibility with TTL (Transistor-Transistor Logic) levels. The 74LVC06APW is designed to deliver the functionality of hex inverter buffers/drivers with open-drain outputs, making it suitable for a wide range of applications, including interfacing and level shifting operations.

Key Features:

• Advanced CMOS Technology: The 74LVC06APW utilizes advanced silicon-gate CMOS technology to ensure high-speed operation while maintaining the low power dissipation of CMOS.
• Wide Operating Voltage: It operates over a wide voltage range of 1.2V to 5.5V, which allows flexibility in both 3.3V and 5V systems.
• High Drive: The open-drain outputs can deliver a high drive current, which is ideal for driving heavy loads or for use in wired-AND logic configurations.
• 5V Tolerant Inputs: The inputs are 5V tolerant, enabling the device to be used in mixed-voltage environments and interfacing with TTL logic levels without the need for external components.
• ESD Protection: The device includes input and output protection against electrostatic discharge, providing robustness and reliability in demanding environments.
• Low Power Consumption: The 74LVC06APW is designed for low power consumption, making it suitable for battery-operated and power-sensitive applications.

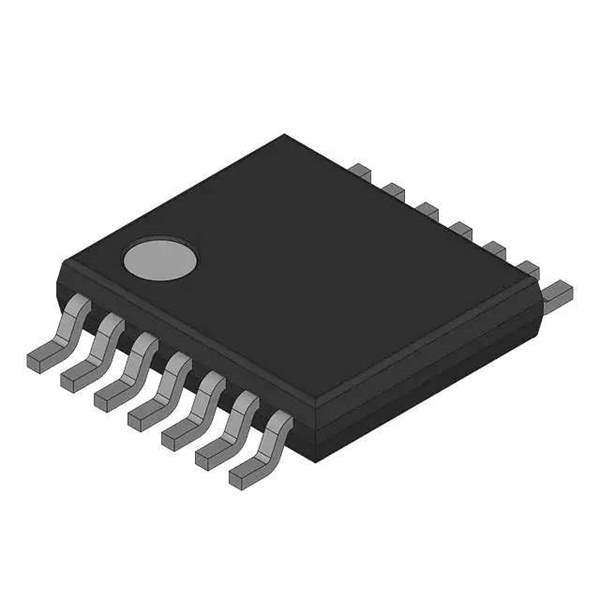

• Multiple Package Options: Available in a TSSOP14 (Thin Shrink Small Outline Package) format, it offers a compact footprint for space-constrained applications.

Applications:

The versatility of the 74LVC06APW makes it an excellent choice for a variety of applications, including:

• Logic level translation between different voltage domains
• Interface circuitry for microprocessors/microcontrollers
• Power management systems
• Communication infrastructure
• Portable electronics
• Automotive applications where robustness is crucial

With its combination of features, the 74LVC06APW by NXP Semiconductors provides a reliable solution for designers looking to integrate hex inverter functionality with the added benefits of open-drain outputs in their electronic systems.
