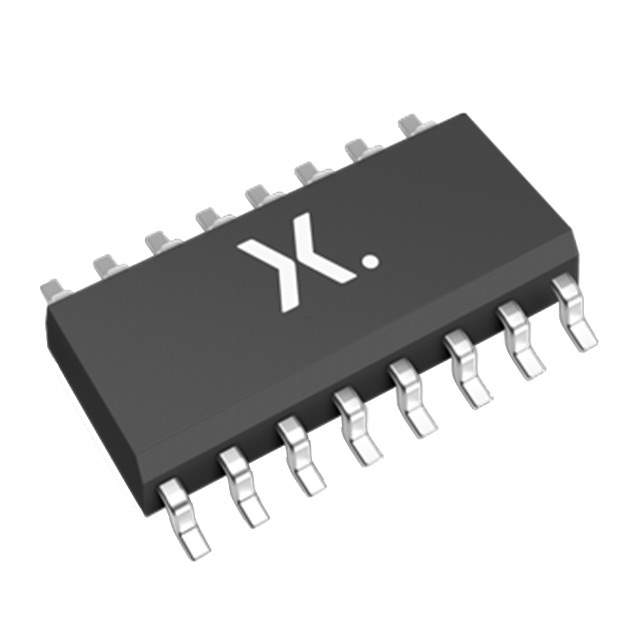

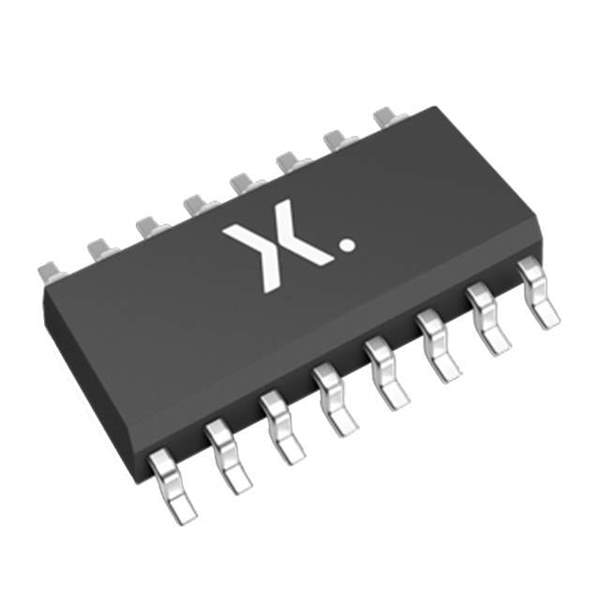

Product Overview: 74LV4051DT - NXP Semiconductors

The 74LV4051DT is a high-performance, single-pole octal-throw analog switch (SP8T) produced by NXP Semiconductors, designed for the multiplexing and demultiplexing of analog or digital signals. This versatile integrated circuit (IC) is part of NXP's 74LV family, which operates at low voltages and is fabricated using advanced silicon-gate CMOS technology.

Featuring low-voltage operation from 2.0V to 5.5V, the 74LV4051DT is optimized for use in 3.3V systems but is also 5V tolerant, allowing for interface flexibility in mixed-voltage environments. Its low power consumption makes it an ideal choice for battery-operated devices, while its high noise immunity ensures reliable performance in electrically noisy conditions.

Key Features:

• Wide Voltage Range: Operates across a broad voltage range from 2.0V to 5.5V, making it suitable for various applications.
• Low Power Dissipation: Exhibits very low quiescent power dissipation, conserving energy in portable and battery-powered designs.
• High Noise Immunity: Possesses high noise immunity and low propagation delay, which are characteristic of CMOS devices, ensuring reliable operation.
• Multiple Signal Handling: Capable of handling both analog and digital signals, providing designers with a flexible multiplexing solution.
• ESD Protection: Features electrostatic discharge protection for its inputs, enhancing the durability of the device in harsh environments.
• Compatibility: TTL and CMOS output drive capability and 5V tolerant inputs allow for use with a wide range of logic families.

Applications:

The 74LV4051DT is a versatile component suitable for a variety of applications, including:

• Analog and digital multiplexing and demultiplexing
• Signal gating
• Data routing
• Function generation
• Communication systems
• Audio and video switching

Its robust design and flexible operation parameters make the 74LV4051DT a preferred choice for engineers and designers looking to create efficient and reliable systems in the consumer electronics, telecommunications, and industrial markets.

For detailed information, including pin configurations, electrical characteristics, and application notes, please refer to the official datasheet provided by NXP Semiconductors.
