Products specifications Report Issue?

Mounting SMD (SMT)
Case / Package SOIC
Lead Free Yes
Number of Circuits 1
Number of Pins 16
Packaging Cut Tape
Polarity Non-Inverting
RoHS Compliant
Win Source Part Number 1040418-74HCT259D-T
Categories Logic - Flip Flops
Manufacturer NXP
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 74HCT259D-T CAD Model

Description

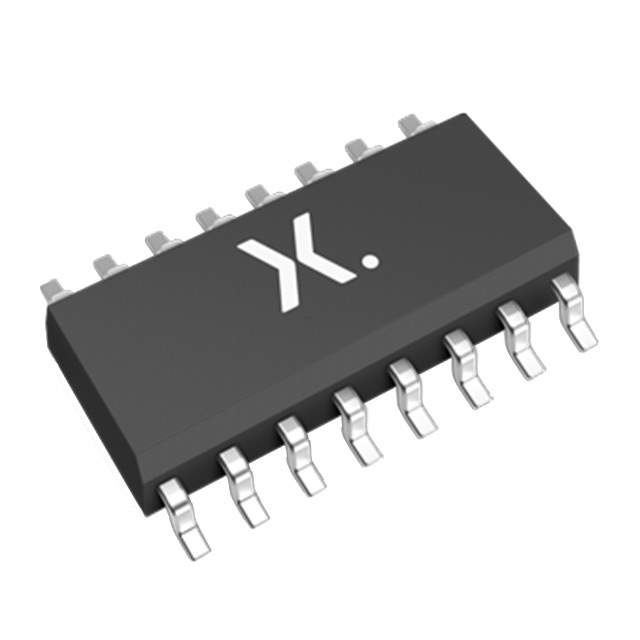

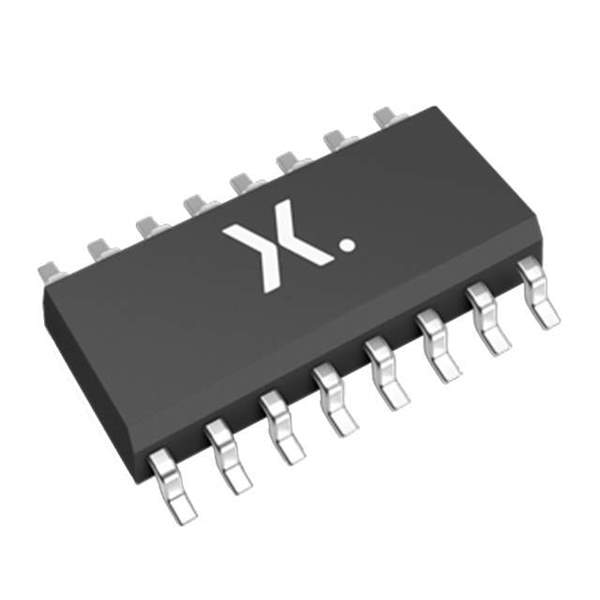

NXP 74HCT259D-T 8-bit Addressable Latch

The NXP 74HCT259D-T is a high-performance, 8-bit addressable latch designed for use in a wide range of digital applications. This integrated circuit is part of the 74HCT family, which is known for its compatibility with TTL (Transistor-Transistor Logic) levels while operating at the higher speed of CMOS technology. The 74HCT259D-T is particularly suited for situations where an 8-bit data storage or a demultiplexing function is required.

Encased in a robust SOIC-16 package, this addressable latch is designed to be easily integrated into various systems. It features eight latches with three binary select inputs (A, B, and C) and an enable input (E). When the enable input is active, the chosen latch, as determined by the select inputs, follows the data input (D). When the enable input is inactive, all latches retain their previous states, thus serving as a memory element. The clear input (CLR) can be used to reset all latches to a low state when applied with a high signal.

One of the key advantages of the NXP 74HCT259D-T is its high noise immunity and low power consumption. It operates in a wide voltage range from 4.5V to 5.5V, which is typical for 5V digital systems, ensuring reliable performance and compatibility with other 5V logic components. The device also boasts a high fan-out capability, allowing it to drive multiple inputs without the need for additional buffering.

The 74HCT259D-T is ideal for applications such as data routing, control systems, and computer logic, where precise and dependable data manipulation is critical. Its ability to directly interface with microprocessors makes it a versatile choice for designers looking to expand output options or create more complex control logic without increasing the number of I/O pins used on the microprocessor.

Overall, the NXP 74HCT259D-T is a durable, efficient, and reliable solution for designers who require a high-quality addressable latch that combines the benefits of CMOS technology with TTL compatibility.
