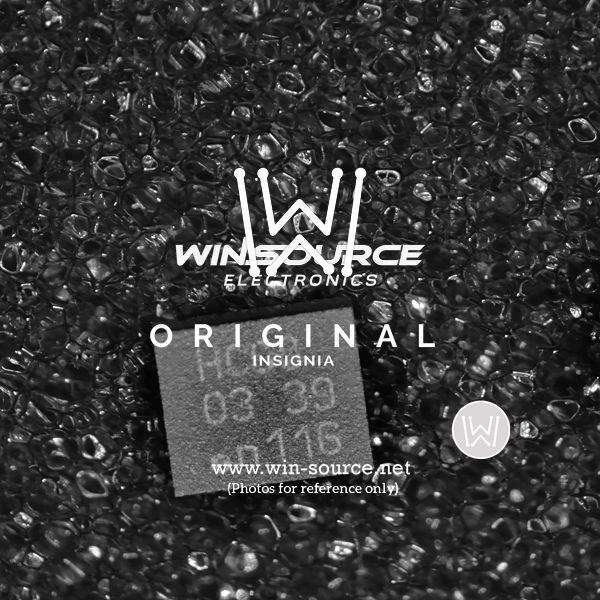

The NXP 74HC08BQ device is a high-speed Si-gate CMOS component that belongs to a broad family of quadruple 2-input logic gates. This particular model, the 74HC08BQ, implements the classic AND gate function, which is fundamental in digital circuits. Each gate has two inputs, hence the name "2-input AND gate". The product is designed for use in applications that require logical gating of two binary signals, where a high output (1) is only present when both inputs are also high.

Key Features

• Logic Type: AND Gate - A logical operator that outputs true or high only when all inputs are true.
• Number of Circuits: 4 - This device contains four independent AND gates in one package.
• Inputs per Circuit: 2 - Each gate has two inputs for binary signals.
• Output Current: High/Low - Capable of sinking or sourcing current when outputting high or low states, respectively.
• Supply Voltage Range: 2 V to 6 V - Compatible with various logic level systems and easy to integrate with other CMOS components.
• Operating Temperature: -40°C to +125°C - Ensures reliable operation even in extreme environmental conditions.
• Logic Case Style: DHVQFN14 - The device is housed in a DHVQFN14 package, which is a compact, surface-mountable design.
• Propagation Delay: The 74HC08BQ offers a fast propagation delay, increasing the efficiency of high-speed logic circuits.

Applications

The 74HC08BQ is versatile and can be utilized in a wide array of electronic applications. These include, but are not limited to:

• Logic and computing systems
• Signal processing
• Function generation
• Industrial control systems
• Embedded systems

Quality and Reliability

NXP Semiconductors is known for its commitment to quality, and the 74HC08BQ is no exception. The device is manufactured to high standards, ensuring reliability and performance consistency across various conditions. It is suitable for both commercial-grade and industrial-grade applications, providing designers with a robust logic solution.
