Introducing the 74CBTLV3126PW Quad Bus Switch from NXP

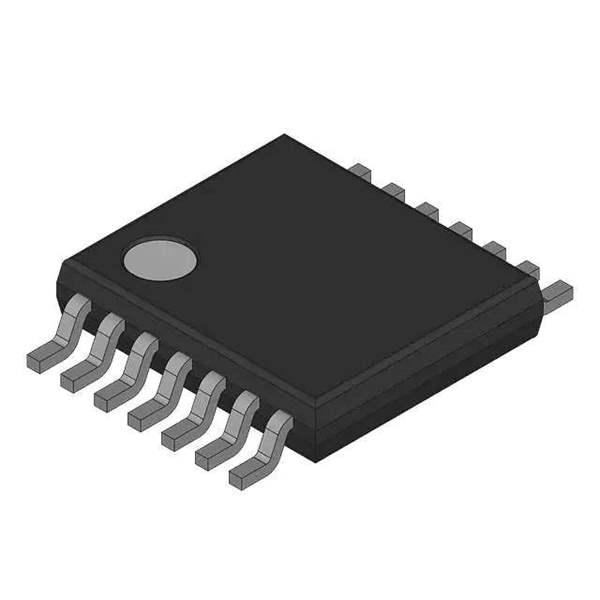

The 74CBTLV3126PW is a high-performance, low-voltage quad bus switch designed by NXP Semiconductors, a leader in the semiconductor industry. This switch is part of the CBTLV (Low-Voltage CMOS Bus Switch) family and is crafted to deliver efficient, high-speed switching in a wide range of applications. Its small 14-pin TSSOP (Thin Shrink Small Outline Package) makes it an excellent choice for space-constrained applications.

With its low on-state resistance of typically 5 ohm at 25 °C, the 74CBTLV3126PW ensures minimal signal distortion and power loss, which is crucial for maintaining signal integrity in high-speed data paths. The device operates over a 2.3V to 3.6V VCC range, making it compatible with 3.3V systems and ensuring it can be integrated into a variety of low-voltage applications without additional level shifting.

The 74CBTLV3126PW features four independent line switches, each controlled by separate enable (OE) inputs. This allows for precise control over signal routing and isolation, which is essential for applications such as data multiplexing, signal gating, and bus isolation. When the OE input is low, the switch is on and can carry bidirectional data; when high, the switch is off, and the connection is high-impedance, effectively isolating the bus lines.

One of the key advantages of the 74CBTLV3126PW is its quick switch times, with a maximum propagation delay of only 0.25ns, ensuring minimal delay in your signal path. Additionally, its low power consumption helps to conserve energy in power-sensitive designs.

The device is also equipped with ESD protection circuitry, providing a high level of protection against electrostatic discharge, which enhances the reliability and longevity of both the switch and the overall system.

In summary, the 74CBTLV3126PW from NXP is a versatile, efficient, and reliable solution for a variety of applications requiring low-voltage, high-speed switching. Whether you're designing for telecommunications, computing, networking, or consumer electronics, this quad bus switch is engineered to meet your needs with precision and performance.
