The 74AVCH20T245DGV:11 is a high-performance, dual-supply voltage level translator from NXP Semiconductors designed for bi-directional level translation of data signals. This device is a part of the 74AVCH family, which is known for its advanced features in signal translation and is particularly suitable for multi-voltage systems.

Key Features

• Voltage Level Translation: This device can translate signals between two different voltage domains, from 1.2V to 3.6V on the A side (VCCA) and from 1.65V to 5.5V on the B side (VCCB), allowing for seamless communication between devices operating at different voltage levels.
• Bidirectional Data Flow: The 74AVCH20T245DGV:11 supports bidirectional operation and data flow without the need for direction control, which simplifies the interface design and reduces the complexity of the system.
• High-Speed Operation: With its capability to support high-speed data transmission, this level translator is ideal for applications that require fast data rates and minimal propagation delay.
• Bus Hold Function: The integrated bus hold function on the data I/Os prevents floating inputs, which can lead to undefined system states and increased power consumption.
• Low Standby Power: Designed with power efficiency in mind, the device has a low standby power consumption, making it suitable for power-sensitive applications.

Applications

The 74AVCH20T245DGV:11 is versatile and can be used in a variety of applications, including but not limited to:

• Mobile Devices
• Computing Devices
• Networking Equipment
• Telecommunication Systems
• Consumer Electronics

Package and Quality

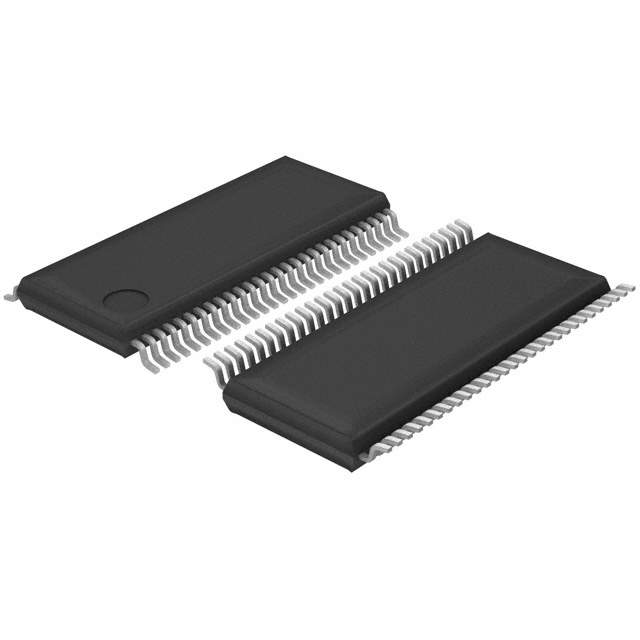

This level translator is offered in a TSSOP (Thin Shrink Small Outline Package) form factor, designated by the "DGV" in its part number, which is suitable for surface mount technology (SMT) and provides a compact footprint for space-constrained applications. NXP's commitment to quality ensures that the 74AVCH20T245DGV:11 meets strict industry standards for performance and reliability.
