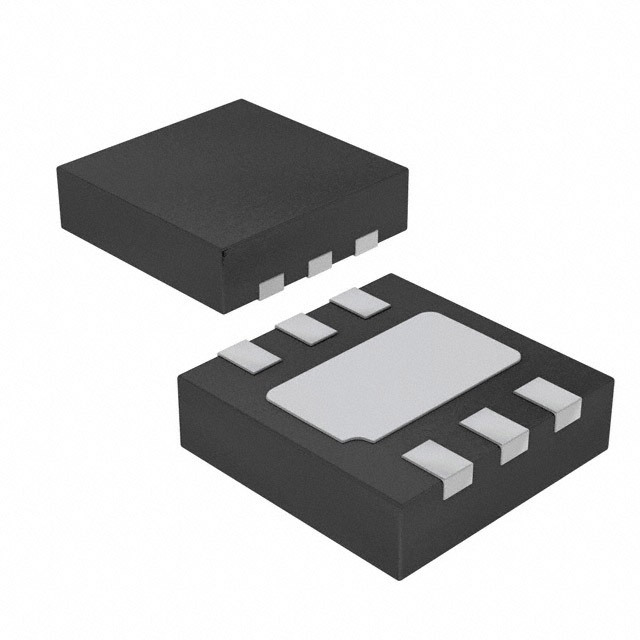

AAT001-10E NVE Corp
Same model may have multiple batches, images only for reference.

AAT001-10E

Part No AAT001-10E
Manufacturer NVE Corp
Catalog Position Sensors - Angle, Linear Position Measuring
Description SENSOR ANGLE 360DEG SMD / Magnetoresistive Sensor Angle External Magnet, Not Included SMD (SMT) Tab
Datasheet
AAT001-10E Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers - Position Sensors - Angle, Linear Position Measuring
Mfr NVE Corp/Sensor Products
Series AAT
Package Tape & Reel
Product Status Active
For Measuring Angle
Technology Magnetoresistive
Rotation Angle - Electrical, Mechanical 0° ~ 360°, Continuous
Linear Range -
Output Resistive
Output Signal -
Actuator Type External Magnet, Not Included
Linearity -
Resistance 2.5 mOhms
Resistance Tolerance -
Voltage - Supply 5.5V
Mounting Type Surface Mount
Termination Style SMD (SMT) Tab
Temperature Range - Operating -40°C ~ 125°C
Package / Case 6-WDFN Exposed Pad
Supplier Device Package 6-TDFN (2.5x2.5)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1375659-AAT001-10E
Ultra Librarian 3D Model Ultra Librarian AAT001-10E CAD Model

Description

The AAT001-10E is an angle and linear position measuring sensor from NVE Corp/Sensor Products' AAT series.

  • Package: 6-WDFN Exposed Pad
  • Operating Temperature: -40°C to 125°C
  • Technology: Magnetoresistive
  • Resistance: 2.5 mOhms
  • Voltage Supply: 5.5V
  • Mounting Type: Surface Mount
  • Rotation Angle Range: 0° to 360°
  • Linear Range: Continuous
