TAS2143-AAAA TDK Corporation
Same model may have multiple batches, images only for reference.

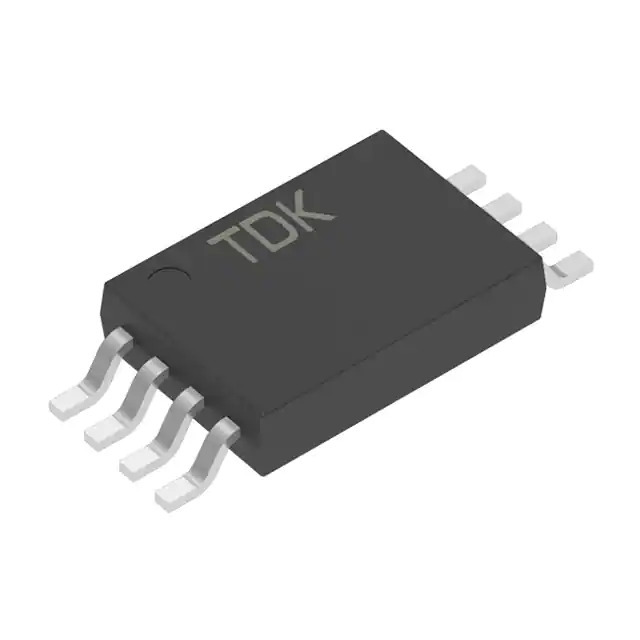

TAS2143-AAAA

Part No TAS2143-AAAA
Manufacturer TDK Corporation
Catalog Position Sensors - Angle, Linear Position Measuring
Description SENSOR ANGLE 360DEG SMD / Magnetoresistive Sensor Angle External Magnet, Not Included Gull Wing
Datasheet
TAS2143-AAAA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers - Position Sensors - Angle, Linear Position Measuring
Mfr TDK Corporation
Series TAS
Package Tape & Reel
Product Status Active
For Measuring Angle
Technology Magnetoresistive
Rotation Angle - Electrical, Mechanical 0° ~ 360°, Continuous
Linear Range -
Output Analog Voltage
Output Signal -
Actuator Type External Magnet, Not Included
Linearity -
Resistance 5 kOhms
Resistance Tolerance -
Voltage - Supply 3V ~ 5.5V
Mounting Type Surface Mount
Termination Style Gull Wing
Temperature Range - Operating -40°C ~ 150°C (TA)
Package / Case 8-TSSOP (0.173", 4.40mm Width)
Supplier Device Package 8-TSSOP
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1375644-TAS2143-AAAA
Ultra Librarian 3D Model Ultra Librarian TAS2143-AAAA CAD Model

Description

The TAS2143-AAAA is a position sensor from TDK Corporation.

  • Series: TAS
  • Package: 8-TSSOP (0.173", 4.40mm Width)
  • Voltage Supply: 3V to 5.5V
  • Resistance: 5 kOhms
  • Technology: Magnetoresistive
  • Mounting Type: Surface Mount
  • Application: Angle Measurement
  • Rotation Angle Range: 0° to 360°, Continuous
  • Output: Analog Voltage
