Same model may have multiple batches, images only for reference.

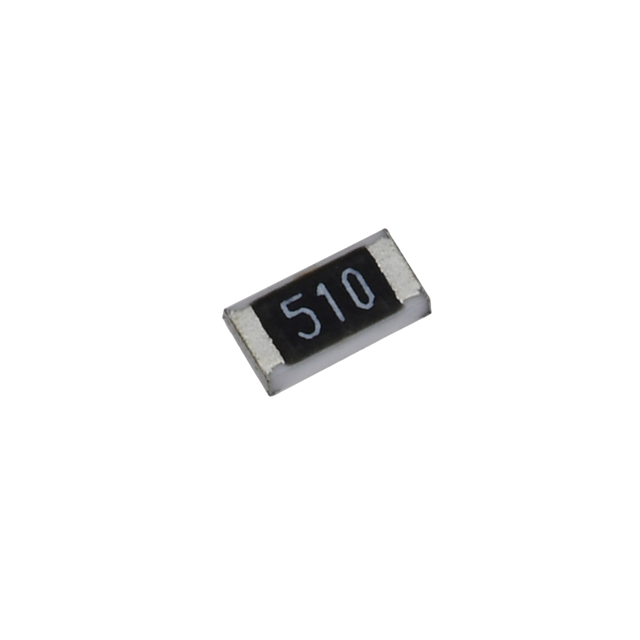

SR1-1206-156 Real Image
Same model may have multiple batches, images only for reference.

SR1-1206-156

Part No SR1-1206-156
Manufacturer NTE
Catalog Chip Resistor - Surface Mount
Description RES 560 OHM 5% 1/4W 1206 / 560 Ohms ±5% 0.25W, 1/4W Chip Resistor 1206 (3216 Metric) Thick Film
Datasheet
SR1-1206-156 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr NTE Electronics, Inc
Series SR1
Package Bag
Resistance 560 Ohms
Tolerance ±5%
Power (Watts) 0.25W, 1/4W
Composition Thick Film
Temperature Coefficient ±200ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case 1206 (3216 Metric)
Supplier Device Package 1206
Dimension 0.126" L x 0.061" W (3.20mm x 1.55mm)
Height - Seated (Max) 0.024" (0.61mm)
Number of Terminations 2
RoHS Status RoHS non-compliant
ECCN EAR99
HTSUS 8533.21.0090
Other Names 2368-SR1-1206-156
Standard Package 1
Win Source Part Number 1166302-SR1-1206-156
Ultra Librarian 3D Model Ultra Librarian SR1-1206-156 CAD Model

Description

The SR1-1206-156 is a chip resistor surface mount electronic component manufactured by NTE Electronics.

  • Series: SR1
  • Product is supplied in: Bag
  • Standard Package: 1
  • Tolerance: ±5%
  • Temperature Coefficient: ±200ppm/°C
  • Power Rating: 0.25W or 1/4W
  • Type: Thick Film
  • Resistance: 560 Ohms
  • Terminations: 2
  • Case: 1206 (3216 Metric)
  • Temperature Range: -55°C to 155°C
