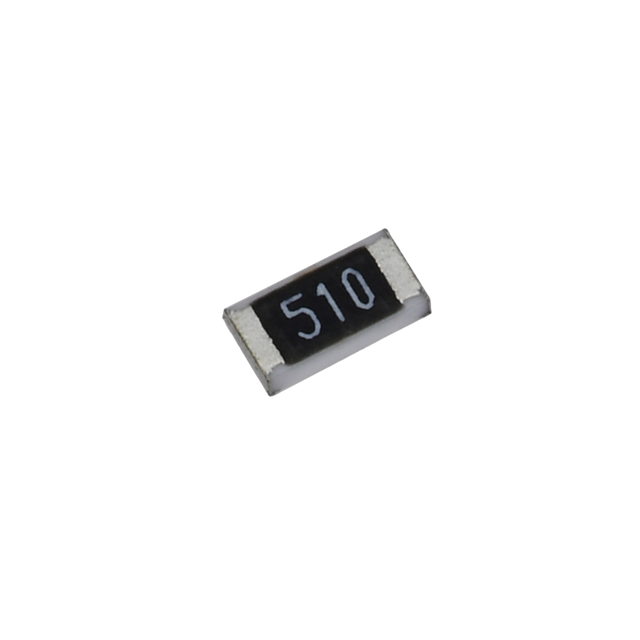

Same model may have multiple batches, images only for reference.
SR1-0603-036 Real Image
Same model may have multiple batches, images only for reference.

SR1-0603-036

Part No SR1-0603-036
Manufacturer NTE
Catalog Chip Resistor - Surface Mount
Description RES 36 OHM 5% 1/16W 0603 / 36 Ohms ±5% 0.063W, 1/16W Chip Resistor 0603 (1608 Metric) Thick Film
Datasheet
SR1-0603-036 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr NTE Electronics, Inc
Series SR1
Package Bag
Resistance 36 Ohms
Tolerance ±5%
Power (Watts) 0.063W, 1/16W
Composition Thick Film
Temperature Coefficient ±200ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case 0603 (1608 Metric)
Supplier Device Package 0603
Dimension 0.061" L x 0.031" W (1.55mm x 0.80mm)
Height - Seated (Max) 0.016" (0.40mm)
Number of Terminations 2
RoHS Status RoHS non-compliant
ECCN EAR99
HTSUS 8533.21.0090
Other Names 2368-SR1-0603-036
Standard Package 1
Win Source Part Number 1120313-SR1-0603-036
Ultra Librarian 3D Model Ultra Librarian SR1-0603-036 CAD Model

Description

The SR1-0603-036 is a chip resistor that is surface mounted, manufactured by NTE Electronics, Inc.

  • Composition: Thick Film
  • Tolerance: ±5%
  • Temperature Coefficient: ±200ppm/°C
  • Power Rating: 0.063W, 1/16W
  • Resistance: 36 ohms
  • Package/Case: 0603 (1608 Metric)
  • Dimension: 0.061" L x 0.031" W (1.55mm x 0.80mm)
  • Temperature Range: -55°C to 155°C
  • RoHS Compliance: Non-compliant
