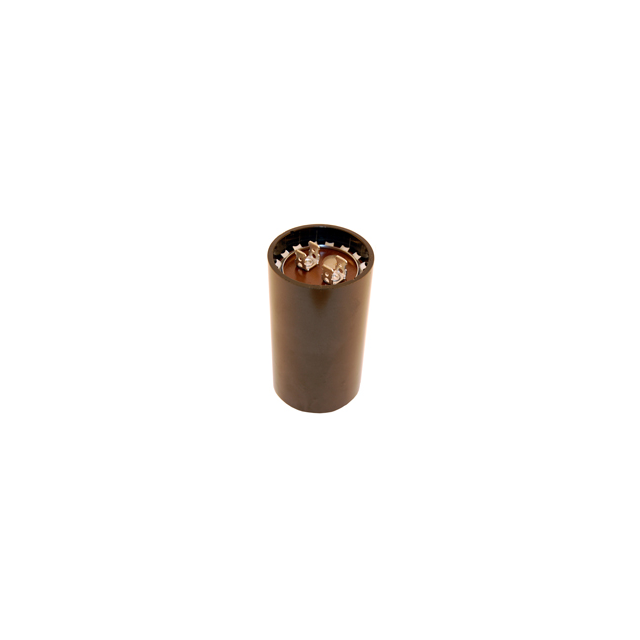

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr NTE Electronics, Inc
Series MSC
Package Box
Capacitance 1500 µF
Voltage - Rated 125 V
Temperature Range - Operating -40°C ~ 65°C
Polarization Bi-Polar
Applications Motor Start
Lead Spacing 0.880" (22.35mm)
Dimension 2.060" Dia (52.32mm)
Height - Seated (Max) 4.380" (111.25mm)
Mounting Type Chassis Mount
Package / Case Radial, Can
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8532.22.0020
Other Names 2368-MSC125V1500
Standard Package 1
Win Source Part Number 1025397-MSC125V1500
Ultra Librarian 3D Model Ultra Librarian MSC125V1500 CAD Model

Description

The MSC series aluminum electrolytic capacitor is a high-quality motor start capacitor with a capacitance of 1500 µF and a rated voltage of 125 V.

  • Polarization: Bi-Polar
  • Mount: Chassis Mount
  • ESR (Equivalent Series Resistance): Not specified
  • Package/Case: Radial, Can
  • Height: 4.380" (111.25mm)
  • Diameter: 2.060" (52.32mm)
  • Operating Temperature: -40°C ~ 65°C
  • Application: Motor Start
