Same model may have multiple batches, images only for reference.

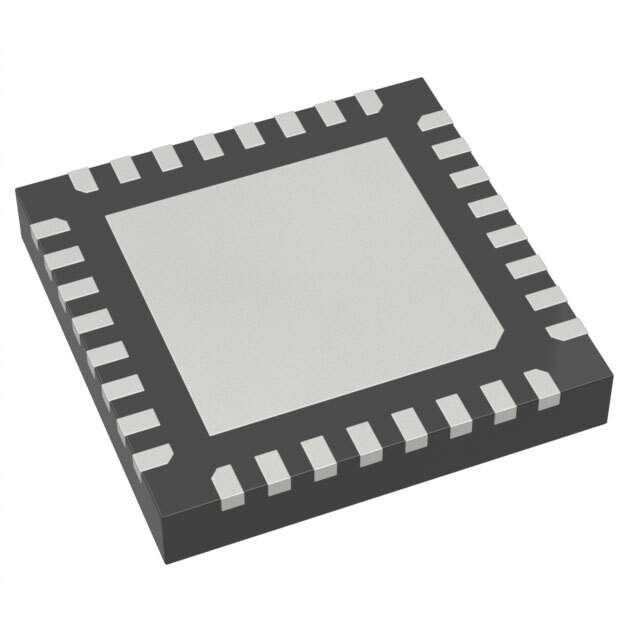

NRF52811-QCAA-R7 Real Image
Same model may have multiple batches, images only for reference.

NRF52811-QCAA-R7

Part No NRF52811-QCAA-R7
Manufacturer Nordic Semiconductors
Catalog RF Receivers
Description BLUETOOTH 5.3 SOC SUPPORTING BLU / IC RF TxRx + MCU 802.15.4, Bluetooth Bluetooth v5.3, Thread 2.4GHz 32-VFQFN Exposed Pad
Datasheet
NRF52811-QCAA-R7 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF/IF and RFID>RF Transceiver ICs
Mfr Nordic Semiconductor ASA
Series nRF52
Package Tape & Reel
Type TxRx + MCU
RF Family/Standard 802.15.4, Bluetooth
Protocol Bluetooth v5.3, Thread
Frequency 2.4GHz
Data Rate (Max) 2Mbps
Power - Output 4dBm
Sensitivity -104dBm
Memory Size 192kB Flash, 24kB RAM
Serial Interfaces ADC, PDM, PWM, SPI, UART
GPIO 17
Voltage - Supply 1.7V ~ 3.6V
Current - Receiving 3.5mA ~ 11.2mA
Current - Transmitting 2.1mA ~ 15.4mA
Temperature Range - Operating -40°C ~ 85°C
Mounting SMD (SMT)
Package / Case 32-VFQFN Exposed Pad
Supplier Device Package 32-QFN (5x5)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
Other Names 1490-NRF52811-QCAA-R7TR,1490-NRF52811-QCAA-R7DKR,1490-NRF52811-QCAA-R7CT
Standard Package 1,500
Win Source Part Number 996548-NRF52811-QCAA-R7
Ultra Librarian 3D Model Ultra Librarian NRF52811-QCAA-R7 CAD Model

Description

The Nordic Semiconductor ASA nRF52811-QCAA-R7 is a RF transceiver IC with a frequency of 2.4GHz.

  • Type: TxRx + MCU
  • Sensitivity: -104dBm
  • Power Output: 4dBm
  • Voltage Supply: 1.7V ~ 3.6V
  • Memory Size: 192kB Flash and 24kB RAM
  • Protocols: Bluetooth v5.3 and Thread
  • Data Rate: 2Mbps
  • GPIOs: 17
  • Serial Interfaces: ADC, PDM, PWM, SPI, and UART
  • Current Transmitting: 2.1mA ~ 15.4mA
  • Current Receiving: 3.5mA ~ 11.2mA
  • RoHS Compliant: Yes
  • Temperature Range: -40°C ~ 85°C
