Same model may have multiple batches, images only for reference.

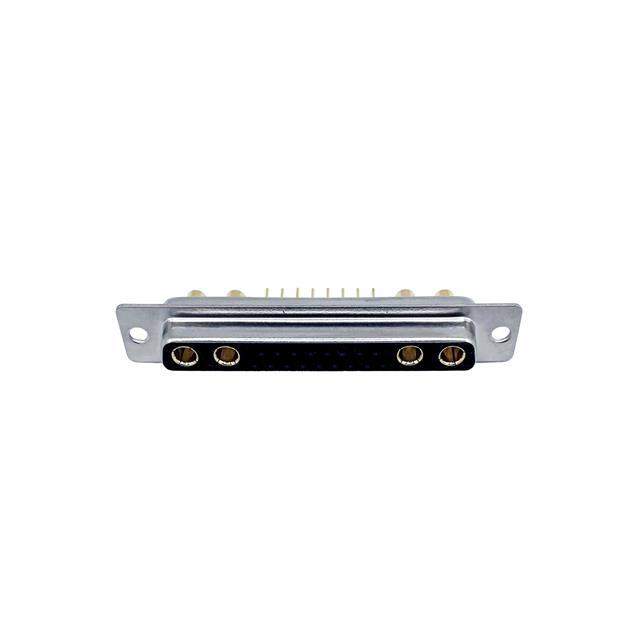

681M21WA4SL141 Real Image
Same model may have multiple batches, images only for reference.

681M21WA4SL141

Part No 681M21WA4SL141
Manufacturer NorComp Inc.
Catalog D-Sub, D-Shaped Connectors - Assemblies
Description CONN D-SUB RCPT 21P PNL MNT SLDR / 21 (17 + 4 Power) Position D-Sub, Combo Receptacle, Female Sockets Connector
Datasheet
681M21WA4SL141 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - D-Sub, D-Shaped Connectors - D-Sub Connector Assemblies
Mfr NorComp Inc.
Series Power-D 681M
Package Tray
Connector Style D-Sub, Combo
Connector Type Receptacle, Female Sockets
Number of Positions 21 (17 + 4 Power)
Number of Rows 2
Mounting Type Panel Mount, Through Hole
Shell Size, Connector Layout 4 (DC, C) - 21WA4
Contact Type Signal and Power
Flange Feature Board Side (4-40)
Termination Solder
Shell Material, Finish Steel, Nickel Plated
Contact Finish Gold
Contact Finish Thickness Flash
Material Flammability Rating UL94 V-0
Current Rating (Amps) 5A, 40A
Features Board Lock
Voltage Rating 250V
Color Black
Contact Form Machined
Dielectric Material Polybutylene Terephthalate (PBT)
Contact Material Copper Alloy
Temperature Range - Operating -55°C ~ 125°C
Base Product Number 681M21W
Standard Package 40
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.8000
Win Source Part Number 1338857-681M21WA4SL141
Ultra Librarian 3D Model Ultra Librarian 681M21WA4SL141 CAD Model

Description

This D-sub connector assembly is designed for electronic components with a power-D 681M series.

  • Series: Power-D 681M
  • Number of Positions: 21 (17+4 Power)
  • Color: Black
  • Connector Type: Receptacle
  • Contact Gender: Female Sockets
  • Contact Types: Signal and Power
  • Number of Rows: 2
  • Termination Type: Solder
  • Contact Finish: Gold (Flash)
  • Contact Form: Machined
  • Connector Style: D-Sub, Combo
  • Voltage Rating: 250V
  • Material Flammability Rating: UL94 V-0
  • Flange Feature: Board Side (4-40)
  • Shell Material and Finish: Steel, Nickel Plated
  • Dielectric Material: Polybutylene Terephthalate (PBT)
  • Shell Size: 4 (DC, C) - 21WA4
  • Mounting Type: Panel Mount, Through Hole
  • Operating Temperature: -55°C ~ 125°C
  • Current Rating: 5A, 40A
  • Manufacturer: NorComp Inc.
