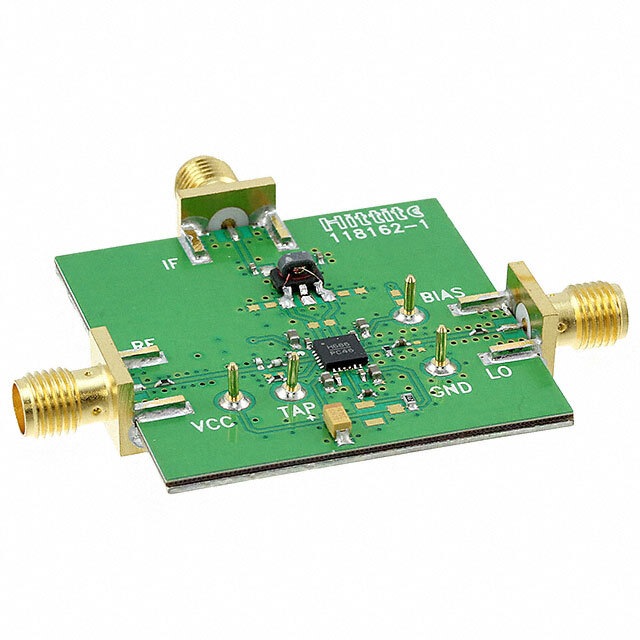

Analog Devices Inc. presents the HMC686LP4, a state-of-the-art RF mixer product designed to meet the demanding requirements of modern wireless infrastructure and complex RF systems. This versatile mixer is part of the Hittite Microwave product family, now incorporated within Analog Devices. The HMC686LP4 is a high-performance component that offers exceptional linearity and noise performance across a wide frequency range.

Key Features

• Frequency Range: The HMC686LP4 operates over an extensive frequency range, making it suitable for a variety of applications in the RF and microwave domains.
• High Linearity: This mixer provides excellent linearity, ensuring low distortion in signal processing which is critical for high-quality communication systems.
• Low Noise Figure: With a low noise figure, the HMC686LP4 minimizes additional noise in signal chains, improving overall system sensitivity and performance.
• LO/RF Isolation: The mixer offers high isolation between the LO (Local Oscillator) and RF (Radio Frequency) ports, reducing potential interference and preserving signal integrity.
• Surface-Mount Package: The HMC686LP4 comes in a compact 4x4 mm QFN package, ideal for space-constrained applications and easy integration into circuit designs.

Applications

The HMC686LP4 is well-suited for a range of applications, including:

• Cellular/4G & 5G telecommunications
• Test equipment and sensors
• Point-to-point and point-to-multipoint radios
• Military and space systems
• Wireless infrastructure

Technical Specifications

For detailed specifications and application support, customers are advised to consult the official product datasheet and technical documentation provided by Analog Devices Inc.
