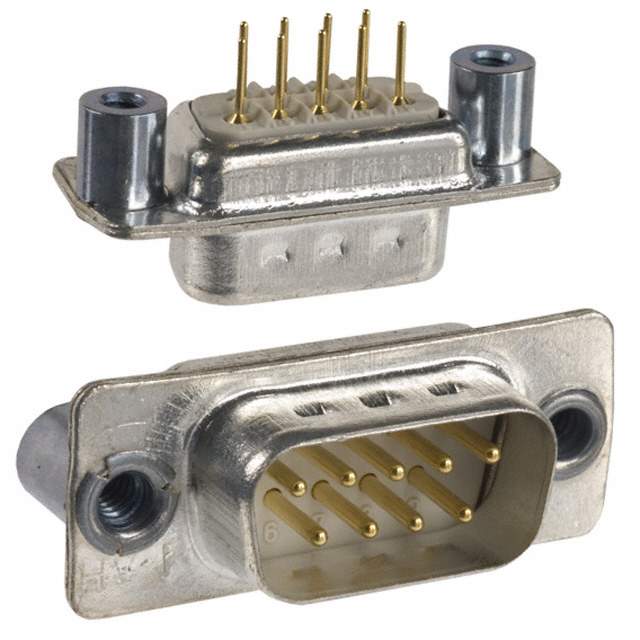

172-009-112R021 Real Image
Same model may have multiple batches, images only for reference.

172-009-112R021

Part No 172-009-112R021
Manufacturer NorComp Inc.
Catalog D-Sub, D-Shaped Connectors - Assemblies
Description CONN D-SUB PLUG 9P PNL MNT SLDR / 9 Position D-Sub Plug, Male Pins Connector
Datasheet
172-009-112R021 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - D-Sub, D-Shaped Connectors - D-Sub Connector Assemblies
Mfr NorComp Inc.
Series 172, M Series
Package Tray
Product Status Obsolete
Connector Style D-Sub
Connector Type Plug, Male Pins
Number of Positions 9
Number of Rows 2
Mounting Type Panel Mount, Through Hole
Shell Size, Connector Layout 1 (DE, E)
Contact Type Signal
Flange Feature Board Side (4-40)
Termination Solder
Shell Material, Finish Steel, Tin Plated
Contact Finish Gold
Contact Finish Thickness Flash
Material Flammability Rating UL94 V-0
Current Rating (Amps) 5A
Features Grounding Indents
Color Beige
Contact Form Machined
Dielectric Material Polybutylene Terephthalate (PBT) , Polyester
Contact Material Brass
Temperature Range - Operating -50°C ~ 100°C
Base Product Number 172-009
Standard Package 45
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1342275-172-009-112R021
Ultra Librarian 3D Model Ultra Librarian 172-009-112R021 CAD Model

Description

This electronic component is a D-Sub connector assembly with a Win Source Part Number of 1342275-172-009-112R021.

  • Win Source Part Number: 1342275-172-009-112R021
  • Series: 172, M
  • Category: Connectors and Interconnects
  • Number of Positions: 9
  • Contact Gender: Male Pins
  • Manufacturer: NorComp Inc.
