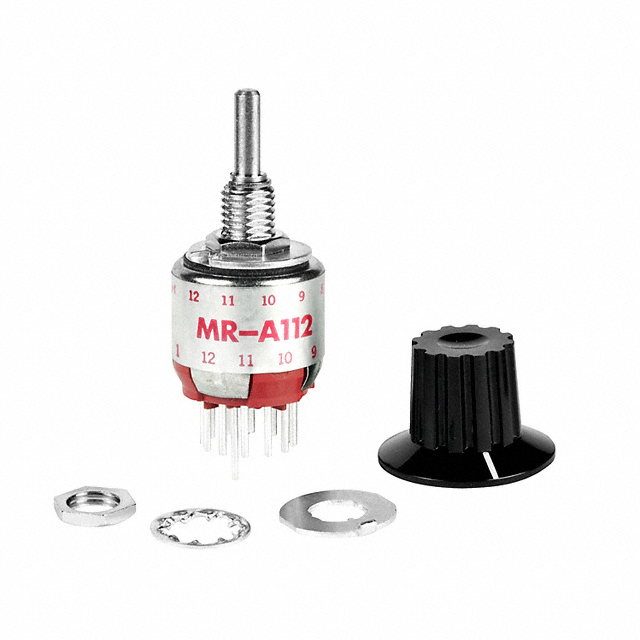

MRA112-A NKK Switches – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

MRA112-A

Part No MRA112-A
Manufacturer NKK Switches
Catalog Rotary Switches
Description SWITCH ROTARY 2-12POS 250MA 125V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category SwitchesRotary Switches
Manufacturer NKK Switches
Series MR
Packaging Box
Part Status Obsolete
Number of Positions 2 ~ 12
Index Stops Adjustable
Number of Decks 1
Number of Poles per Deck 1
Circuit per Deck SP12T
Contact Timing Non-Shorting (BBM)
Current Rating (Amps) 250mA (AC)
Voltage Rating - AC 125 V
Actuator Type Knob
Actuator Length 13.00mm
Angle of Throw 30°
Contact Material Copper
Contact Finish Silver
Mounting Type Panel Mount, Through Hole
Termination Style PC Pin
Features Process Sealed
Depth Behind Panel 17.00mm
Panel Cutout Dimensions Circular - 6.35mm Dia
Base Product Number MRA112
Ultra Librarian 3D Model Ultra Librarian MRA112-A CAD Model
