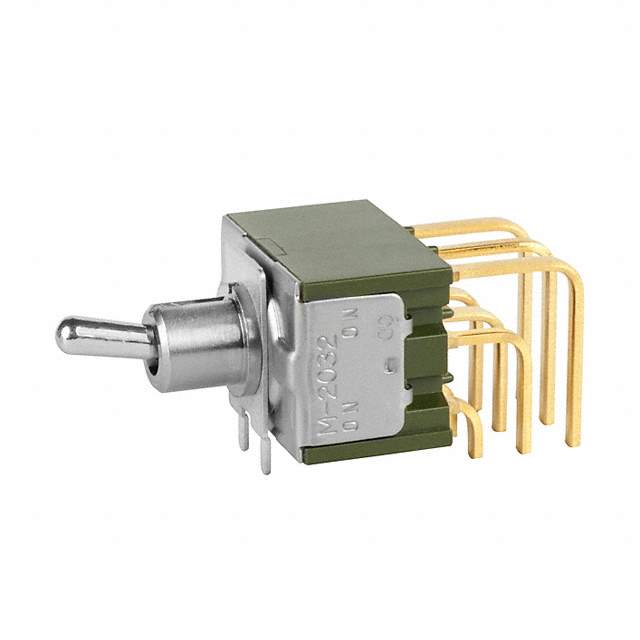

M2032S2A2G40 Real Image
Same model may have multiple batches, images only for reference.

M2032S2A2G40

Part No M2032S2A2G40
Manufacturer NKK Switches
Catalog Toggle Switches
Description SWITCH TOGGLE 3PDT 0.4VA 28V / Toggle Switch 3PDT Through Hole, Right Angle, Vertical
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Toggle Switches
Mfr NKK Switches
Series M
Package Tray
Mounting Type Through Hole, Right Angle, Vertical
Circuit 3PDT
Switch Function On-On
Current Rating (Amps) 0.4VA (AC/DC)
Voltage Rating - AC 28 V
Voltage Rating - DC 28 V
Actuator Type Standard Round
Actuator Length 6.86mm
Illumination Non-Illuminated
Termination Style PC Pin
Bushing Thread Unthreaded
Features Epoxy Sealed Terminals
Temperature Range - Operating -30°C ~ 85°C
Actuator Material Brass, Chrome Plated
Electrical Life 50,000 Cycles
Base Product Number M2032S2
Other Names 360-2999,-M2032S2A2G40,-M2032S2A2G40-RO,-M2032S2A2G40-RO,M2032S2A2G40,M2032S2A2G40-RO,M2032S2A2G40-RO
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 1232845-M2032S2A2G40
Ultra Librarian 3D Model Ultra Librarian M2032S2A2G40 CAD Model

Description

The NKK Switches M2032S2A2G40 is a 3PDT toggle switch with a standard round actuator.

  • Switch Type: Toggle
  • Configuration: 3PDT
  • Actuator Type: Standard Round
  • Voltage Rating: 28V AC/DC
  • Current Rating: 0.4VA
  • Temperature Range: -30°C to 85°C
  • Mounting Type: Through-hole
  • Packaging: Tray
