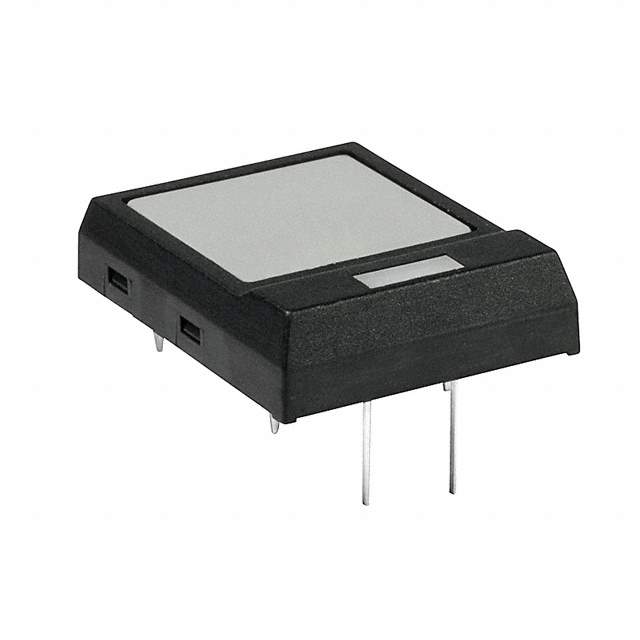

The JF15RP1HC is a momentary push button switch manufactured by NKK Switches. It belongs to the JF series, which is known for its compact size, high reliability, and various design options. These switches are designed for applications requiring a momentary contact, such as control panels, instrumentation, and other electronic devices.

Applications

• Control panels
• Instrumentation
• Medical equipment
• Telecommunications equipment
• Audio and video equipment
• Computer peripherals
• Vending machines
• Security systems

Features

• Momentary Action: Provides a temporary electrical connection when pressed.
• Compact Size: Allows for high-density mounting on control panels and PCBs.
• High Reliability: Designed for long-term performance and durability.
• Various Actuator Styles: Available with different button shapes and sizes.
• Multiple Terminal Options: Offers various termination options for easy wiring.
• Sealed Construction: Provides protection against dust and moisture.
• UL and CUL Recognized: Meets industry safety standards.

Benefits

• Reliable Operation: Ensures consistent performance in demanding environments.
• Space Saving: Compact design allows for efficient use of panel space.
• Easy Installation: Various terminal options simplify wiring and assembly.
• Enhanced Durability: Sealed construction protects against environmental factors.
• Versatile Application: Suitable for a wide range of electronic devices and systems.
• Compliance with Standards: Meets industry safety requirements for peace of mind.

Additional Details

The JF15RP1HC switch typically has a contact rating of 0.4VA at 28V DC. It features a snap-in mounting style for easy installation. The operating temperature range is usually between -25°C to +70°C. The switch is designed to withstand mechanical shocks and vibrations, making it suitable for rugged applications. Its compact size and robust construction make it an ideal choice for various control and instrumentation needs.
