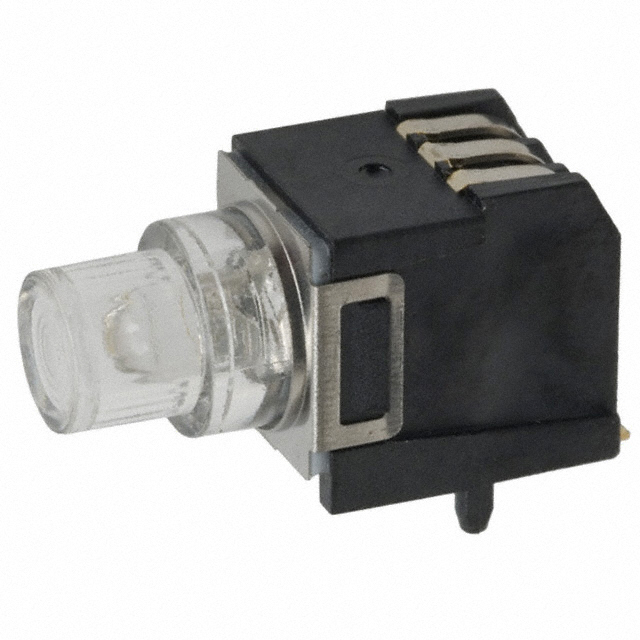

Same model may have multiple batches, images only for reference.

JB15KH

Name: JB15KH
Brand: NKK Switches
SKU: 1553893
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	JB15KH
Manufacturer	NKK Switches
Catalog	Tactile Switches
Description	SWITCH TACTILE SPST-NO 0.05A 24V
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Circuit	SPST-NO
Switch Function	Off-Mom
Contact Rating @ Voltage	0.05A @ 24VDC
Actuator Type	Plunger for Cap
Mounting Type	Through Hole, Right Angle
Actuator Orientation	Side Actuated
Termination Style	PC Pin
Outline	10.80mm x 6.54mm
Illumination	Non-Illuminated
Operating Force	176gf
Ingress Protection	IP67 - Dust Tight, Waterproof
Features	Process Sealed
Temperature Range - Operating	-25°C ~ 70°C
Package	Tray
Supply and Demand Status	Shortage
Win Source Part Number	1553893-JB15KH
Ultra Librarian 3D Model	Ultra Librarian JB15KH CAD Model

Description
