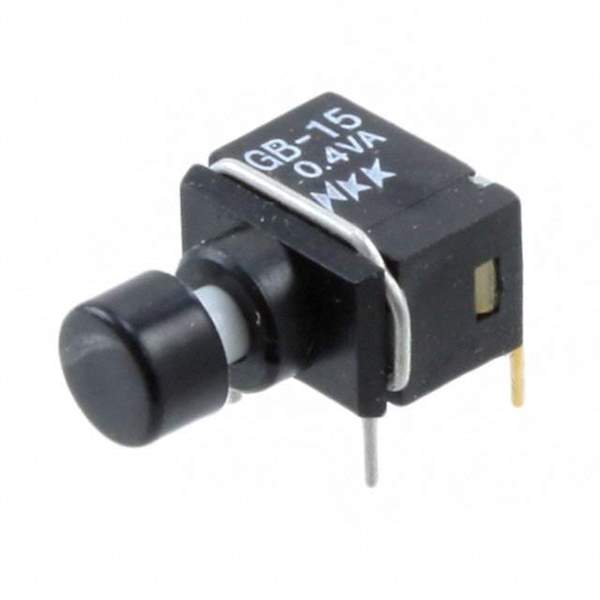

GB15AH-XA Real Image
Same model may have multiple batches, images only for reference.

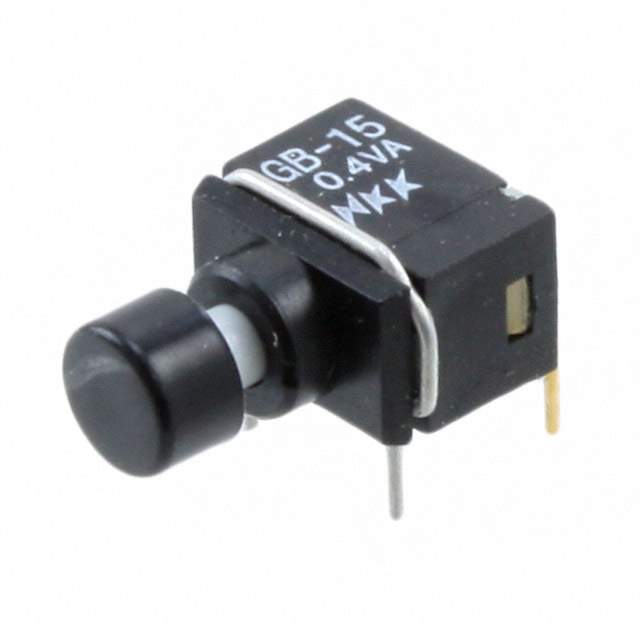

GB15AH-XA

Part No GB15AH-XA
Manufacturer NKK Switches
Catalog Pushbutton Switches
Description Process Sealed Ultra-Miniature Pushbuttons | SWITCH PUSH SPDT 0.4VA 28V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Switches
Manufacturer NKK Switches
Packaging Tray
Mounting Style Through Hole, Right Angle
Type Standard
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 0.4VA (AC/DC)
Voltage Rating - AC 28V
Voltage Rating - DC 28V
Actuator Type Round, Button
Color - Actuator/Cap Black
Termination Style PC Pin
Temperature Range - Operating -30°C ~ 85°C
Mechanical Life 50,000 Cycles
Electrical Life 50,000 Cycles
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1176877-GB15AH-XA
Manufacturer Homepage www.nkkswitches.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian GB15AH-XA CAD Model

Description

The NKK Switches GB15AH-XA is a standard type SPDT circuit switch from NKK Switches.

  • Mounting Style: Right angle through-hole
  • Termination: PC pin
  • Voltage Rating: 28V AC/DC
  • Electrical Life: 50,000 cycles
  • Switch Function: On-Mom
  • Actuator Type: Round button
  • Mechanical Life: 50,000 cycles
  • Actuator/Cap Color: Black
  • Suitable for use in various applications
  • Medium popularity and limited supply and demand status
