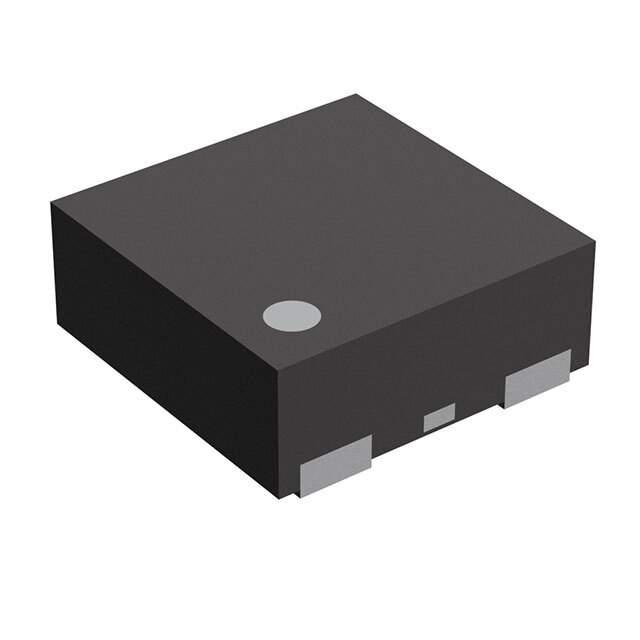

RP110L311D-TR Real Image
Same model may have multiple batches, images only for reference.

RP110L311D-TR

Part No RP110L311D-TR
Manufacturer Nisshinbo Micro Devices Inc.
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LIN 3.1V 150MA DFN1010-4 / Linear Voltage Regulator IC Positive Fixed 1 Output 150mA DFN1010-4
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>PMIC - Voltage Regulators - Linear
Mfr Nisshinbo Micro Devices Inc.
Series RP110x
Package Tape & Reel (TR)
Output Configuration Positive
Output Type Fixed
Number of Regulators 1
Voltage - Input (Max) 5.25V
Voltage - Output (Min/Fixed) 3.1V
Voltage Dropout (Max) 0.35V @ 150mA
Current - Output 150mA
Current - Quiescent (Iq) 2 µA
Control Features Enable
Protection Features Over Current
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting SMD (SMT)
Package / Case 4-XDFN Exposed Pad
Supplier Device Package DFN1010-4
Base Product Number RP110
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8542.39.0001
Other Names RICRICRP110L311D-TR,2156-RP110L311D-TR
Standard Package 10,000
Win Source Part Number 966371-RP110L311D-TR
Ultra Librarian 3D Model Ultra Librarian RP110L311D-TR CAD Model

Description

The RP110x series is a fixed output voltage regulator from Nisshinbo Micro Devices Inc.

  • Maximum Input Voltage: 5.25V
  • Maximum Output Current: 150mA
  • Output Voltage: 3.1V
  • Control Feature: enable
  • Package: 4-XDFN exposed pad
  • Supplier Device Package: DFN1010-4
  • Operating Temperature Range: -40°C to 85°C
  • Quiescent Current: 2 µA
  • Voltage Dropout: 0.35V @ 150mA
