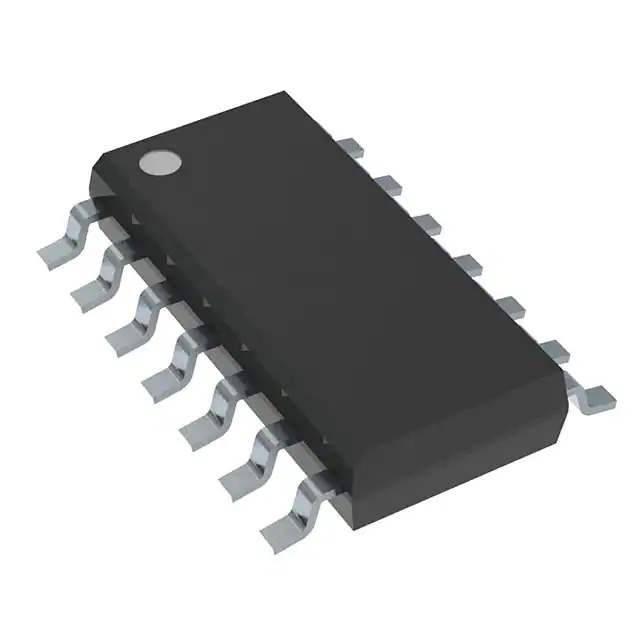

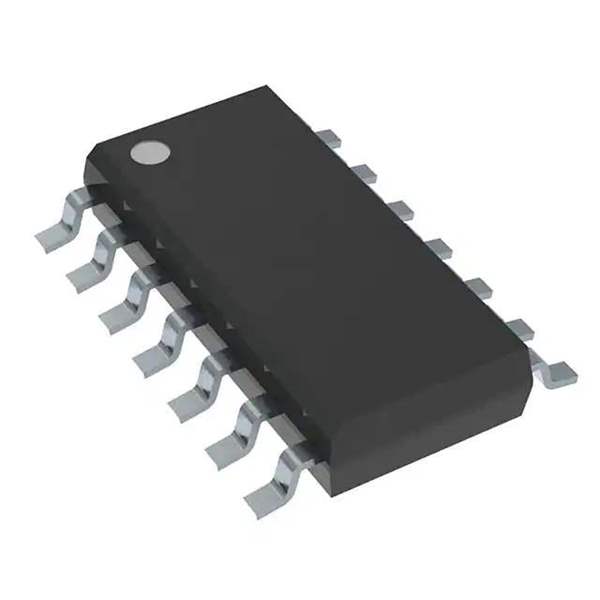

Same model may have multiple batches, images only for reference.

NJM3474G-TE2

Name: NJM3474G-TE2
Brand: Nisshinbo Micro Devices Inc.
SKU: 801011
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	NJM3474G-TE2
Manufacturer	Nisshinbo Micro Devices Inc.
Catalog	Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
Description	IC OPAMP GP 4 CIRCUIT 14SOP
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Integrated Circuits (ICs) - Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
Mfr	Nisshinbo Micro Devices Inc.
Package	Tape & Reel
Product Status	Active
Amplifier Type	General Purpose
Number of Circuits	4
Slew Rate	10V/µs
Gain Bandwidth Product	3 MHz
Current - Input Bias	80 nA
Voltage - Input Offset	1 mV
Current - Supply	8mA
Current - Output / Channel	60 mA
Voltage - Supply Span (Min)	3 V
Voltage - Supply Span (Max)	36 V
Temperature Range - Operating	-40°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	14-SOIC (0.154", 3.90mm Width)
Supplier Device Package	14-SOP
Base Product Number	NJM3474
Standard Package	2,500 pcs
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN	EAR99
HTSUS	8542.33.0001
Win Source Part Number	801011-NJM3474G-TE2
Ultra Librarian 3D Model	Ultra Librarian NJM3474G-TE2 CAD Model

Alternative Products

Description

The NJM3474G-TE2 is a 4-channel general-purpose operational amplifier manufactured by Nisshinbo Micro Devices Inc.

Series: NJM3474
Package: 14-SOIC
Gain Bandwidth Product: 3 MHz
Slew Rate: 10V/μs
Input Bias Current: 80 nA
Input Offset Voltage: 1 mV
Operating Temperature Range: -40°C to 125°C
Supply Voltage Range: 3V to 36V
Current Supply: 8mA
Current Output: 60mA
Packaging: Tape and Reel
Standard Package: 2,500 pieces
