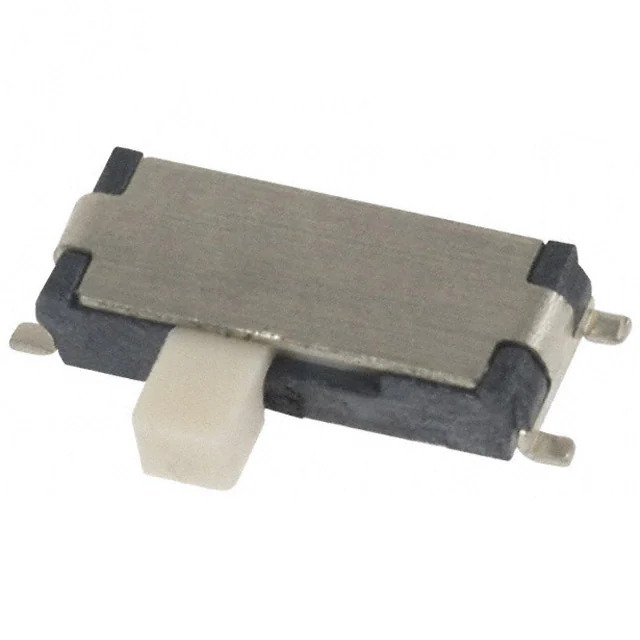

CUS-12TB Nidec Copal Electronics
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches - Slide Switches
Mfr Nidec Components Corporation
Series CUS
Package Tape & Reel
Product Status Active
Circuit SPDT
Contact Timing Non-Shorting (BBM)
Switch Function On-On
Current Rating (Amps) 300mA (DC)
Voltage Rating - DC 4 V
Actuator Type Standard
Actuator Length 1.50mm
Contact Material Copper Alloy
Contact Finish Gold
Mounting Type Surface Mount, Right Angle
Termination Style Gull Wing
Features -
Temperature Range - Operating -20°C ~ 70°C
Actuator Material Polyamide (PA), Nylon
Switch Travel 1.50mm
Mechanical Life -
Electrical Life 10,000 Cycles
Operating Force 204gf
Base Product Number CUS-12T
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9050
Win Source Part Number 1376334-CUS-12TB
Ultra Librarian 3D Model Ultra Librarian CUS-12TB CAD Model

Description

The CUS-12TB is a surface mount slide switch from Nidec Components Corporation.

  • Series: CUS
  • Package: Tape and Reel
  • Circuit: SPDT
  • Switch Function: On-On
  • Current Rating (DC): 300mA
  • Voltage Rating (DC): 4V DC
  • Contact Finish: Gold
  • Contact Material: Copper Alloy
  • Actuator Type: Standard
  • Termination Style: Gull Wing
  • Electrical Life: 10,000 cycles
  • Operating Force: 204gf
  • Switch Travel: 1.50mm
  • Actuator Material: Polyamide (PA), nylon
