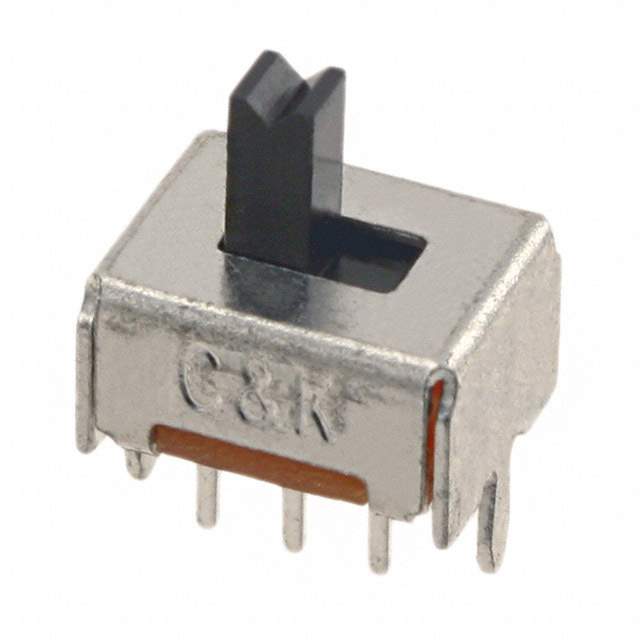

Same model may have multiple batches, images only for reference.

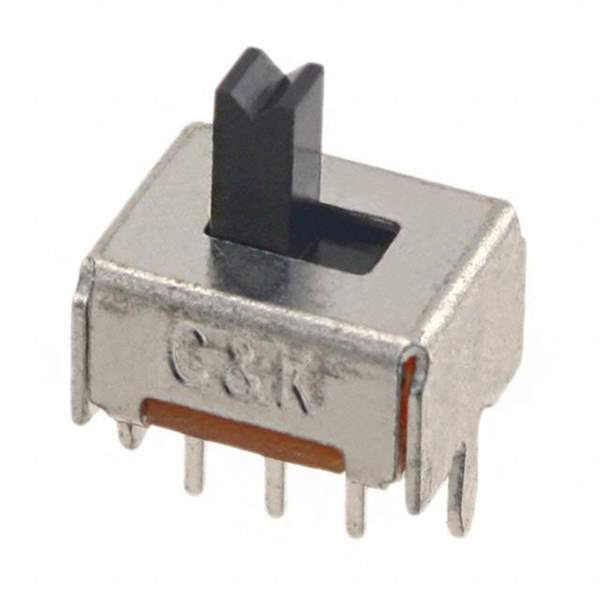

OS202011MS2QN1 Real Image
Same model may have multiple batches, images only for reference.

OS202011MS2QN1

Part No OS202011MS2QN1
Manufacturer C&K Components
Catalog Slide Switches
Description SWITCH SLIDE DPDT 100MA 12V / Slide Switch DPDT Through Hole
Datasheet
OS202011MS2QN1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Slide Switches
Mfr C&K
Series OS
Package Bulk
Circuit DPDT
Contact Timing Non-Shorting (BBM)
Switch Function On-On
Current Rating (Amps) 100mA (DC)
Voltage Rating - DC 12 V
Actuator Type Standard
Actuator Length 4.00mm
Contact Material Copper Alloy
Contact Finish Silver
Mounting Type Through Hole
Termination Style PC Pin
Features Epoxy Sealed Terminals
Temperature Range - Operating -30°C ~ 70°C
Actuator Material Polyoxymethylene (Acetal) (POM)
Switch Travel 2.00mm
Mechanical Life 10,000 Cycles
Electrical Life 10,000 Cycles
Base Product Number OS202011
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9050
Other Names OS202011MS2QN1-ND,CKN9545,2266-OS202011MS2QN1,*OS202011MS2QN1,OS202011MS2QN1INACTIVE
Standard Package 400
Win Source Part Number 1152837-OS202011MS2QN1
Ultra Librarian 3D Model Ultra Librarian OS202011MS2QN1 CAD Model

Description

The OS202011MS2QN1 is a DPDT slide switch from the OS series of C&K.

  • Actuator Type: Standard
  • Actuator Length: 4.00mm
  • Switch Travel: 2.00mm
  • Actuator Material: Polyoxymethylene (Acetal) (POM)
  • Voltage Rating: 12 V DC
  • Current Rating: 100mA
  • Contact Finish: Silver
  • Contact Material: Copper Alloy
  • Mount: Through Hole
  • Temperature Range: -30°C ~ 70°C
  • Electrical Life: 10,000 Cycles
  • Mechanical Life: 10,000 Cycles
