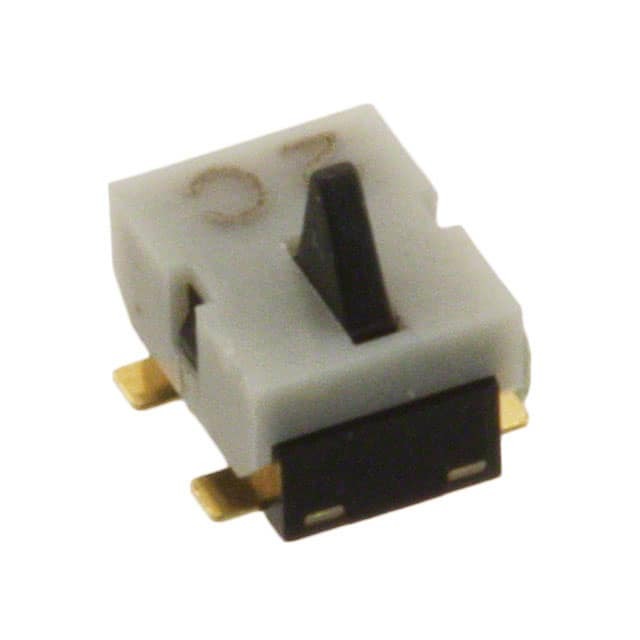

CL-DB-1CB-A2T Nidec Copal Electronics
Same model may have multiple batches, images only for reference.

CL-DB-1CB-A2T

Part No CL-DB-1CB-A2T
Manufacturer Nidec Copal Electronics
Catalog Snap Action, Limit Switches
Description SWITCH DETECTOR SPST-NO 1MA 5V
Datasheet
CL-DB-1CB-A2T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Limit Switches
Mfr Nidec Components Corporation
Series CL-DB
Package Tape & Reel (TR)
Product Status Active
Circuit SPST-NO
Switch Function Off-Mom
Current Rating (Amps) 1mA (DC)
Voltage Rating - DC 5 V
Actuator Type Angled Toggle (Detector)
Mounting Type Surface Mount
Termination Style Gull Wing
Ingress Protection -
Features -
Operating Force 35gf
Release Force -
Operating Position 0.120" (3.05mm)
Pretravel 0.012" (0.3mm)
Differential Travel -
Overtravel 0.029" (0.74mm)
Temperature Range - Operating -40°C ~ 85°C
Electrical Life 100,000 Cycles
Mechanical Life -
Base Product Number CL-DB-1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9031
Win Source Part Number 1376141-CL-DB-1CB-A2T
Ultra Librarian 3D Model Ultra Librarian CL-DB-1CB-A2T CAD Model

Description

The 1376141-CL-DB-1CB-A2T is a surface mount limit switch from Nidec Components Corporation.

  • Temperature Range: -40°C to 85°C
  • Current Rating: 1mA (DC)
  • Circuit: SPST-NO
  • Switch Function: Off-Mom
  • Voltage Rating: 5VDC
  • Actuator Type: Angled Toggle (Detector)
  • Mounting: Surface Mount
  • Operating Force: 35gf
  • Mechanical Life: 100,000 Cycles
