Same model may have multiple batches, images only for reference.

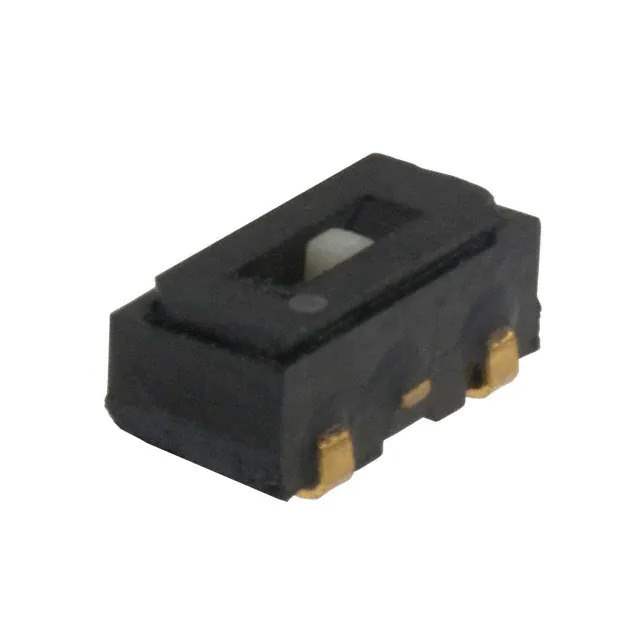

CAS-120TA1 Real Image
Same model may have multiple batches, images only for reference.

CAS-120TA1

Part No CAS-120TA1
Manufacturer Nidec Copal Electronics
Catalog Slide Switches
Description SWITCH SLIDE SPDT 100MA 6V
Datasheet
CAS-120TA1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Slide Switches
Mfr Nidec Copal Electronics
Series CAS
Package Tape & Reel
Product Status Active
Circuit SPDT
Contact Timing Not Specified
Switch Function On-On
Current Rating (Amps) 100mA (DC)
Voltage Rating - DC 6 V
Actuator Type Flush
Actuator Length Flush
Contact Material Copper Alloy
Contact Finish Gold
Mounting Type Surface Mount
Termination Style J Lead
Temperature Range - Operating -40°C ~ 85°C
Actuator Material Polyamide (PA), Nylon
Switch Travel 0.60mm
Electrical Life 2,000 Cycles
Operating Force 51 ~ 510gf
Base Product Number CAS-120
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9050
Win Source Part Number 865751-CAS-120TA1
Ultra Librarian 3D Model Ultra Librarian CAS-120TA1 CAD Model

Description

The CAS-120TA1 is a slide switch from the CAS series. It features a SPDT circuit and an on-on switch function.

  • Series: CAS
  • Circuit: SPDT
  • Switch Function: On-On
  • Voltage Rating: 6 V DC
  • Current Rating: 100mA
  • Termination Style: Surface Mount
  • Switch Travel: 0.60mm
  • Operating Force: 51 ~ 510gf
  • Contact Finish: Gold
  • Contact Material: Copper Alloy
  • Actuator Material: Polyamide (PA), Nylon
  • Operating Temperature: -40°C to 85°C
  • Manufacturer: Nidec Copal Electronics
