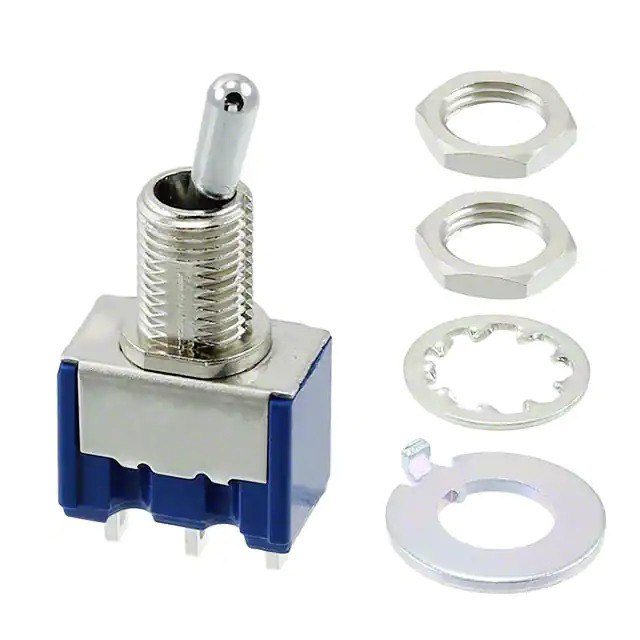

8J1011-Z Nidec Copal Electronics
Same model may have multiple batches, images only for reference.

8J1011-Z

Part No 8J1011-Z
Manufacturer Nidec Copal Electronics
Catalog Toggle Switches
Description SWITCH TOGGLE SPDT 6A 125V / Toggle Switch SPDT Panel Mount
Datasheet
8J1011-Z Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Toggle Switches
Mfr Nidec Components Corporation
Series 8J
Package Bulk
Product Status Active
Mounting Type Panel Mount
Circuit SPDT
Switch Function On-On
Current Rating (Amps) 6A (AC), 4A (DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 30 V
Actuator Type Standard Round
Actuator Length 6.80mm
Illumination Non-Illuminated
Illumination Type, Color -
Illumination Voltage (Nominal) -
Termination Style Solder Lug
Panel Cutout Dimensions Circular - 6.50mm Dia
Bushing Thread 1/4-40
Ingress Protection -
Features -
Temperature Range - Operating -30°C ~ 85°C
Actuator Material -
Electrical Life 50,000 Cycles
Base Product Number 8J1011
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 1375997-8J1011-Z
Ultra Librarian 3D Model Ultra Librarian 8J1011-Z CAD Model

Description

The 1375997-8J1011-Z is a toggle switch from Nidec Components Corporation.

  • Series: 8J
  • Mounting Type: Panel Mount
  • Temperature Range: -30°C to 85°C
  • Circuit Configuration: SPDT
  • Switch Function: On-On
  • Voltage Rating (AC): 125V (AC)
  • Voltage Rating (DC): 30V (DC)
  • Current Rating (AC): 6A (AC)
  • Current Rating (DC): 4A (DC)
  • Termination Style: Solder Lug
  • Panel Cutout Diameter: 6.50mm
  • Electrical Life: 50,000 cycles
  • Common Applications: Industrial machinery, automotive applications, and home appliances
