Same model may have multiple batches, images only for reference.

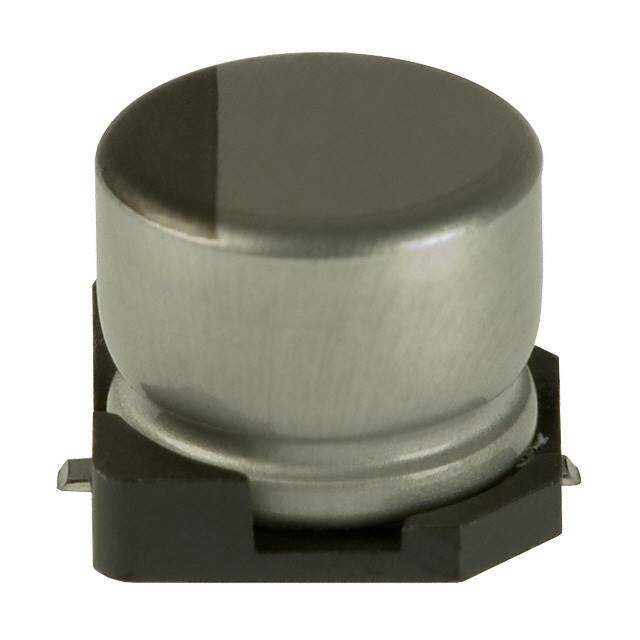

UWT1V220MCL1GB Real Image
Same model may have multiple batches, images only for reference.

UWT1V220MCL1GB

Part No UWT1V220MCL1GB
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 22UF 20% 35V SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Nichicon
Packaging Reel
Capacitance 22μF
Tolerance ±20%
Voltage - Rated 35V
Lifetime at Temp. 1000 Hrs at 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Applications Use For General
Ripple Current at Low Frequency 42mA at 120Hz
Ripple Current at High Frequency 63mA at 10kHz
Dimension 0.248" Dia (6.30mm)
Height - Seated (Maximum) 0.213" (5.40mm)
Surface Mount Land Size 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Style SMD
Manufacturer Package Radial, Can - SMD
Manufacturer Pack Quantity 1,000
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 809157-UWT1V220MCL1GB
Ultra Librarian 3D Model Ultra Librarian UWT1V220MCL1GB CAD Model

Description

Nichicon offers a 22μF capacitance for general use.

  • Package: Reel
  • Mounting: SMD
  • Tolerance: ±20%
  • Rated Voltage: 35V
  • Polarization: Polar
  • Surface Mount Land Size: 0.260" L x 0.260" W (6.60mm x 6.60mm)
  • Temperature Range: -55°C to 105°C
  • Dimension: 0.248" Dia (6.30mm)
  • Manufacturer Package: Radial, can - SMD
  • Height: 0.213" (5.40mm)
  • Manufacturer Pack Quantity: 1,000
  • Lifetime @ Temp.: 1000 Hrs @ 105°C
  • Ripple Current @ Low Frequency: 42mA @ 120Hz
  • Ripple Current @ High Frequency: 63mA @ 10kHz
